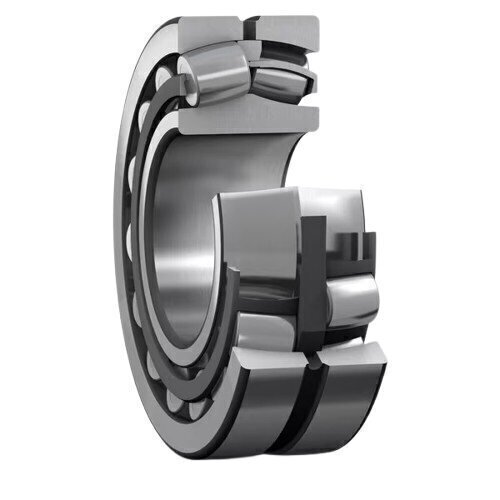

22326CCJA/W33VA405 SKF Spherical Roller Bearing for Vibratory Applications 130mm x 280mm x 93mm
This specialized SKF spherical roller bearing is engineered specifically for vibratory applications, offering exceptional performance in high-stress environments. Designed to withstand extreme vibration, high loads, and accelerated speeds, it's an ideal solution for demanding industrial machinery.
Key Features
- W33 design featuring lubrication groove and 3 holes for optimal lubricant distribution
- CC configuration with two window-type steel cages and flangeless inner ring
- JA pressed cage construction of unhardened sheet steel, centered on outer ring
- VA405 specification optimized for vibratory applications with surface-hardened cages
- Self-aligning capability to compensate for shaft misalignment
Technical Specifications
- Inside Diameter: 130mm
- Outside Diameter: 280mm
- Width: 93mm
- Bore Type: Cylindrical
- Clearance: C4
- Cage Material: Sheet steel
- Operating Temperature: -30 to +200°C
- Tolerance Class: P5 bore/P6 outside diameter
Primary Applications
- Road rollers and compaction equipment
- Vibratory screens and separators
- Industrial saw frames
- Mining and construction machinery
- Heavy-duty processing equipment
This robust bearing is engineered to excel in applications requiring resistance to high loads, speeds, accelerations, and centrifugal forces. Its design ensures reliable performance even under the most demanding operating conditions where traditional bearings might fail. The bearing's open design allows for custom lubrication solutions, while the precision tolerances ensure optimal running accuracy.
Reference Numbers: 22326CCJA/W33VA405, 22326CCJAW33VA405, 22326 CCJA/W33VA405
