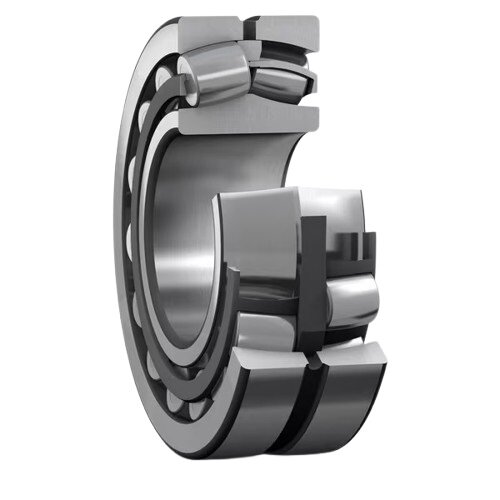

22324CCKJA/W33VA405 SKF Spherical Roller Bearing for Vibratory Applications 120mm x 260mm x 86mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C4
Inside Diameter
120mm
Material
Standard bearing steel
Outer ring
Without groove/lubrication holes
Outside Diameter
260mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Bore tolerance P5 and outside diameter tolerance P6
Version
For vibrating load
Width
86mm
Reference
22324CCKJA/W33VA405, 22324CCKJAW33VA405, 22324 CCKJA/W33VA405
Additional Reference:
10019749
Brand
SKF
Quick Order Code
BB-495875
Product Description
This specialized SKF spherical roller bearing is specifically engineered for vibratory applications, offering exceptional performance in demanding environments with high loads, speeds, accelerations, and centrifugal forces. The VA405 designation indicates its suitability for vibratory machinery, featuring surface-hardened cages for enhanced durability.
Technical Specifications
- Internal Dimensions: 120mm x 260mm x 86mm
- Tapered Bore with 1:12 ratio
- C4 clearance classification for enhanced performance
- Operating temperature range: -30°C to +200°C
- Precision tolerances: P5 bore and P6 outside diameter
- Sheet steel cage construction
- Open bearing design (non-sealed)
- Manufactured from standard bearing steel
Design Features
- W33 design with lubrication groove and three holes for optimal lubricant distribution
- CC design featuring:
- Two window-type steel cages
- Flangeless inner ring
- Guide ring centered on inner ring
- JA design with pressed cage of unhardened sheet steel, centered on outer ring
- VA405 specification for vibratory applications with surface-hardened cages
Ideal Applications
- Vibratory screens and separators
- Road rollers and compaction equipment
- Saw frames and cutting machinery
- Construction and mining vibrating equipment
- Industrial shakers and sorting machines
- Any application requiring high vibration resistance
This bearing's specialized design ensures reliable performance in applications where standard bearings might fail due to vibration-induced stress. The combination of surface-hardened cages and precise engineering makes it particularly suitable for the most demanding vibratory applications.
Reference Numbers: 22324CCKJA/W33VA405, 22324CCKJAW33VA405, 22324 CCKJA/W33VA405
