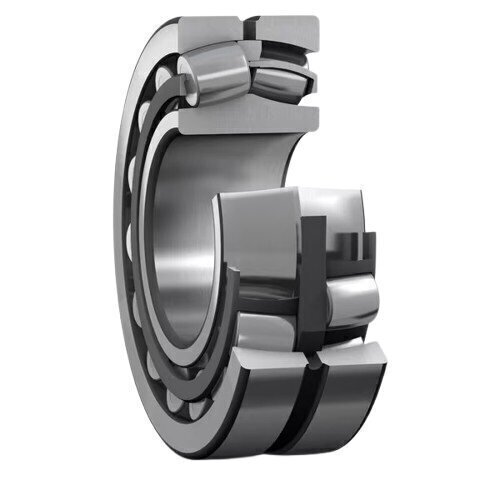

22324CCJA/W33VA405 SKF Spherical Roller Bearing for Vibratory Applications 120mm x 260mm x 86mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
C4
Inside Diameter
120mm
Material
Standard bearing steel
Outer ring
Without groove/lubrication holes
Outside Diameter
260mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Bore tolerance P5 and outside diameter tolerance P6
Version
For vibrating load
Width
86mm
Reference
22324CCJA/W33VA405, 22324CCJAW33VA405, 22324 CCJA/W33VA405
Additional Reference:
10023811
Brand
SKF
Quick Order Code
BB-496177
Product Description
This specialized SKF spherical roller bearing is specifically engineered for vibratory applications, offering exceptional performance under extreme operating conditions. Designed with the VA405 specification, it excels in environments with intense vibration, high loads, and rapid acceleration.
Key Design Features
- W33 lubrication system featuring groove and three holes for optimal lubricant distribution
- CC design with two window-type steel cages and flangeless inner ring
- JA specification with pressed, unhardened sheet steel cage centered on outer ring
- Surface-hardened cages (VA405) specifically designed for vibratory applications
- Self-aligning capability to accommodate shaft misalignment
Technical Specifications
- Inside Diameter: 120mm
- Outside Diameter: 260mm
- Width: 86mm
- Bore Type: Cylindrical
- Clearance: C4
- Temperature Range: -30°C to +200°C
- Cage Material: Sheet steel
- Tolerance: P5 bore tolerance and P6 outside diameter tolerance
- Configuration: Open bearing (no seals)
Primary Applications
- Vibratory screening equipment
- Road construction machinery
- Compaction rollers
- Industrial saw frames
- Crushing and sorting equipment
- Material separation systems
This robust bearing is engineered to withstand the demanding conditions of vibratory applications, including very high loads, speeds, accelerations, and centrifugal forces. Its specialized design ensures reliable performance and extended service life in applications where standard bearings would quickly fail.
Alternative part numbers: 22324CCJA/W33VA405, 22324CCJAW33VA405, 22324 CCJA/W33VA405
