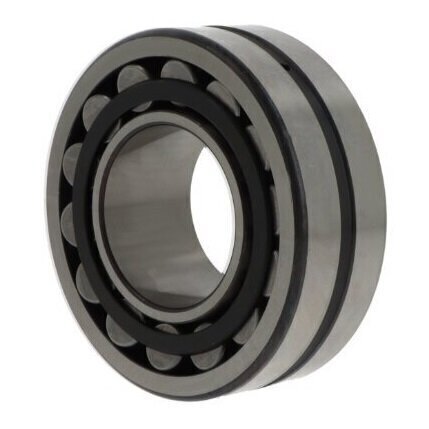

22320EKJA/VA405 SKF Spherical Roller Bearing for Vibratory Applications 100mm x 215mm x 73mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
RHP SF 4 Bolt Flanged
SKF Round 4 Bolt
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C4
Inside Diameter
100mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
215mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
For vibrating load
Width
73mm
Reference
22320EKJA/VA405, 22320EKJAVA405, 22320 EKJA/VA405
Additional Reference:
10046280
Brand
SKF
Quick Order Code
BB-497889
Product Description
This premium spherical roller bearing from SKF is specifically engineered for vibratory applications, offering exceptional performance in high-stress environments where vibration and heavy loads are constant challenges.
Key Features:
- Specially designed for vibratory machinery with VA405 specification for enhanced durability
- JA pressed steel cage centered on outer ring for improved stability
- Tapered bore (1:12) for secure mounting and easy removal
- C4 clearance providing greater internal space for high-speed operation
- Lubrication groove with holes in outer ring ensuring optimal lubrication
- Operating temperature range: -30°C to +200°C
- Precision dimensions: 100mm bore x 215mm outer diameter x 73mm width
- Manufactured to P0/PN2 tolerance class (ABEC 1)
Optimized for Vibratory Applications:
- Surface-hardened cages (VA405) for enhanced wear resistance
- Capable of handling extreme loads and high accelerations
- Designed to withstand significant centrifugal forces
- Self-aligning capabilities for optimal performance under misalignment
Ideal Applications:
- Road roller equipment
- Vibratory screening machines
- Saw frames
- Construction vibrating equipment
- Industrial shaker systems
- Heavy-duty crushing and sorting machinery
This robust SKF bearing is designed as an open bearing (non-sealed) and manufactured from standard bearing steel. Its specialized design ensures reliable performance in the most demanding vibratory applications while maintaining excellent load-handling capabilities.
Reference Numbers: 22320EKJA/VA405, 22320EKJAVA405, 22320 EKJA/VA405
