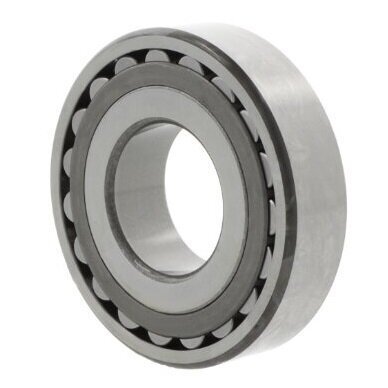

22309E SKF Spherical Roller Bearing 45mm x 100mm x 36mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Clearance
Standard
Inside Diameter
45mm
Outside Diameter
100mm
Width
36mm
Reference
22309E, 22309 E
Brand
SKF
Quick Order Code
BB-19553
Product Description
The 22309E SKF Spherical Roller Bearing is a high-performance precision bearing engineered to deliver exceptional reliability and versatility in challenging mechanical environments.
Key Features
- Self-aligning design that compensates for shaft misalignment and deflection
- Cylindrical bore configuration (45mm internal diameter)
- Dimensions: 45mm x 100mm x 36mm
- Two window-type steel cages with flangeless inner ring
- Guide ring precisely centered on the inner ring
- Standard clearance for optimal performance
Performance Capabilities
This spherical roller bearing excels in applications that demand:
- High radial load handling
- Bidirectional axial load support
- Tolerance for shaft misalignment
- Consistent performance in challenging mechanical environments
Typical Applications
- Heavy-duty industrial machinery
- Mining and construction equipment
- Automotive and transportation systems
- Conveyor and material handling systems
- Agricultural machinery
- Power transmission equipment
The 22309E bearing is insensitive to misalignment of the shaft relative to the housing and can accommodate shaft deflection or bending. Its robust design makes it an ideal solution for engineers and maintenance professionals seeking reliable, high-performance bearing technology.
