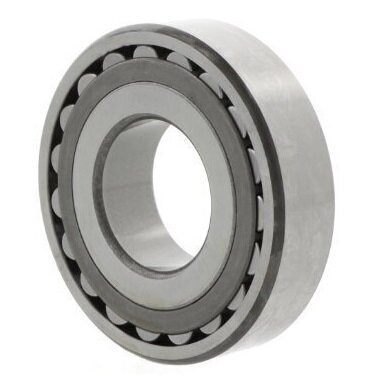

22222E/C3 SKF Spherical Roller Bearing 110mm x 200mm x 53mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
C3
Inside Diameter
110mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
200mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
53mm
Reference
22222E/C3, 22222EC3, 22222 E/C3
Additional Reference:
10008587
Brand
SKF
Quick Order Code
BB-493972
Product Description
This premium SKF spherical roller bearing is engineered for superior performance in demanding industrial applications. It features a robust design with two window-type steel cages and a flangeless inner ring, with guide rings centered on the cages for optimal stability and operation.
Key Features:
- Self-aligning capability to compensate for shaft misalignment
- High radial and axial load capacity in both directions
- Sheet steel cage construction for durability
- C3 internal clearance for enhanced performance
- Lubrication groove with holes in outer ring for improved lubrication
- Operating temperature range: -30°C to +200°C
- Manufactured to P0/PN2 (ABEC 1) tolerance class
Technical Specifications:
- Inside Diameter: 110mm
- Outside Diameter: 200mm
- Width: 53mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Design: Open bearing (non-sealed)
- Alternative References: 22222E/C3, 22222EC3, 22222 E/C3
Ideal Applications:
- Heavy industrial machinery
- Mining equipment
- Construction machinery
- Conveyor systems
- Industrial gearboxes
- Paper processing equipment
- Steel manufacturing machinery
- General industrial power transmission applications
This versatile bearing is particularly suited for applications where shaft misalignment is common and where reliable performance under heavy loads is essential. The C3 clearance specification makes it especially suitable for applications with demanding operating conditions or where thermal expansion needs to be accommodated.
