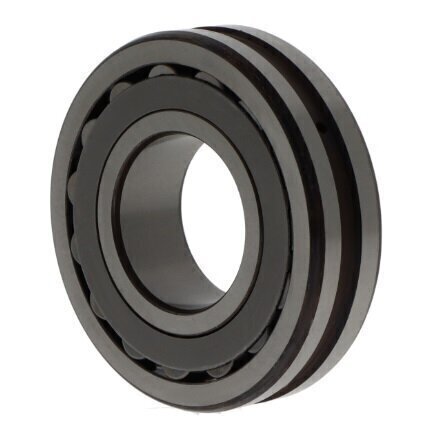

22216EK/C4 SKF Spherical Roller Bearing 80mm x 140mm x 33mm
This SKF spherical roller bearing features a tapered bore with a 1:12 taper ratio and is designed for superior performance in demanding industrial applications. With dimensions of 80mm (inside), 140mm (outside), and 33mm width, this self-aligning bearing is engineered to handle both high radial and axial loads while compensating for shaft misalignment.
Key features include:
- E-type design with two window-type steel cages
- Flangeless inner ring with guide centered on the cages
- C4 clearance specification for high-speed applications
- Lubrication groove with lubrication holes on outer ring
- Operating temperature range from -30°C to +200°C
- Standard bearing steel construction
- Open bearing design without seals
This bearing is particularly well-suited for applications requiring higher operating speeds and where shaft deflection or misalignment is common, such as:
- Industrial fans and blowers
- Electric motors
- Pumps and compressors
- Conveyor systems
- Industrial gearboxes
- Paper processing equipment
The tapered bore design (1:12 ratio) allows for secure mounting on tapered shaft seats or adapter sleeves, making it ideal for applications requiring precise shaft fitting and easy dismounting.
Also available under references: 22216EK/C4, 22216EKC4, 22216 EK/C4
