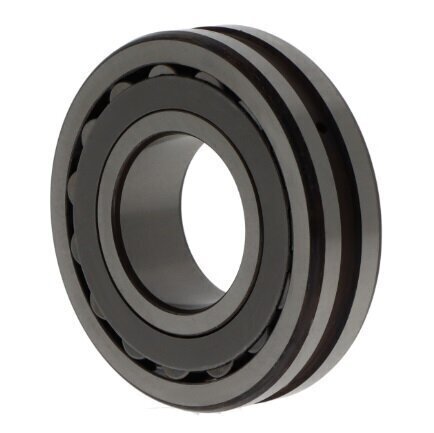

22212EK/C3 SKF Spherical Roller Bearing 60mm x 110mm x 28mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
A Belts (13mm x 8mm)
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C3
Inside Diameter
60mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
110mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Version
Standard version
Width
28mm
Reference
22212EK/C3, 22212EKC3, 22212 EK/C3
Additional Reference:
10008236
Brand
SKF
Quick Order Code
BB-493952
Product Description
This premium SKF spherical roller bearing (22212EK/C3) delivers outstanding performance in demanding industrial applications where shaft misalignment and heavy loads are common challenges. The bearing features a self-aligning design that ensures reliable operation even under complex loading conditions.
Technical Specifications
- Internal Dimensions: 60mm x 110mm x 28mm
- Tapered Bore with 1:12 ratio for secure mounting
- C3 clearance classification for enhanced performance
- Operating temperature range: -30°C to +200°C
- Sheet steel cage construction
- Manufactured from standard bearing steel
Design Features
- E-type design with two window-type steel cages
- Flangeless inner ring with guide ring centered on inner ring
- Outer ring features lubrication groove with distribution holes
- Open bearing design (non-sealed)
- Standard version configuration
Common Applications
- Industrial gearboxes and transmissions
- Heavy machinery and equipment
- Material handling systems
- Construction and mining equipment
- Processing machinery
The bearing's self-aligning capabilities make it particularly suitable for applications where shaft deflection or misalignment occurs during operation. Its robust construction and precise engineering ensure reliable performance under both radial and axial loads.
Reference Numbers: 22212EK/C3, 22212EKC3, 22212 EK/C3
