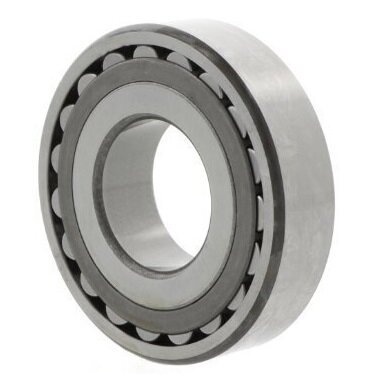

22211E/C3 SKF Spherical Roller Bearing 55mm x 100mm x 25mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Angular Contact Bearings
FAG Spherical Roller
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
C3
Inside Diameter
55mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
100mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Version
Standard version
Width
25mm
Reference
22211E/C3, 22211EC3, 22211 E/C3
Additional Reference:
10008175
Brand
SKF
Quick Order Code
BB-493947
Product Description
A high-performance spherical roller bearing designed for reliable operation in demanding industrial environments. This SKF bearing (Reference: 22211E/C3, 22211EC3, 22211 E/C3) features a self-aligning design that compensates for shaft misalignment while handling substantial radial and axial loads in both directions.
Key Features
- Two window-type steel cages provide optimal roller guidance and stability
- Flangeless inner ring design with guide centering on the inner ring
- Lubrication groove and holes in outer ring ensure effective lubricant distribution
- C3 internal clearance for enhanced performance in varying operating conditions
- Operating temperature range of -30°C to +200°C
- Manufactured from high-quality standard bearing steel
Technical Specifications
- Inside Diameter: 55mm
- Outside Diameter: 100mm
- Width: 25mm
- Bore Type: Cylindrical
- Cage Type: Sheet steel
- Configuration: Open bearing (non-sealed)
Common Applications
- Industrial machinery and equipment
- Material handling systems
- Mining and construction machinery
- Power transmission equipment
- Processing plant equipment
- General industrial applications requiring misalignment accommodation
This standard version bearing is ideal for applications requiring reliable performance under challenging conditions where shaft misalignment may occur. The open design allows for custom lubrication solutions based on specific application requirements.
