Quick Code: BB-504772

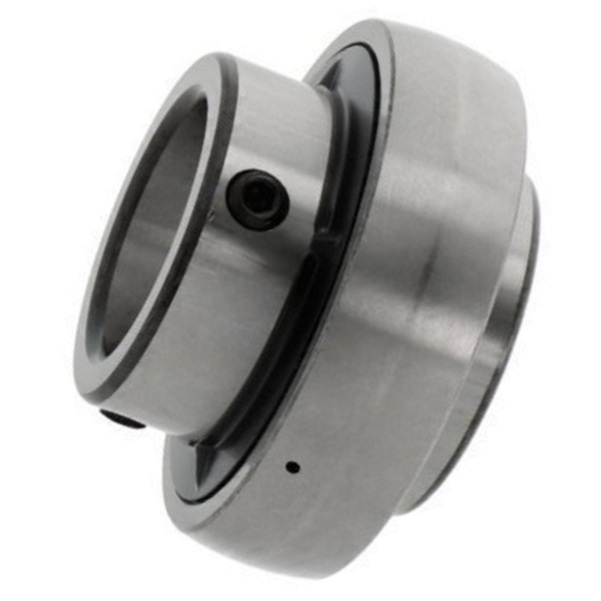

YET 211-200 SKF 2inch Bearing Insert with Eccentric L ocking Collar
Also Try
SKF Plummer Block
SKF Square 4 Bolt Bearings FY, FYJ
2 Bolt FYT & FYTB
SKF Round 4 Bolt
SKF Take-up Units
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Bore Dia (d)
50.8mm = 2inch
Fixing
Eccentric locking collar
Inner ring
Widened inner ring on one side
Inner Ring Width (B)
32.6mm
Inside Dia (d)
50,8mm
Lubrication
Relubricatable
Material
Standard bearing steel
Outer Ring Profile
Spherical
Outer Ring Width (C)
25mm
Outside Dia (D)
100mm
Seal
Contact seals on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Total Width
48.4mm
Reference
YET211-200
Additional Reference:
10078114
Brand
SKF
Quick Order Code
BB-504772
Product Description
Insert bearing with an eccentric locking collar and narrow inner ringInsert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
