Quick Code: BB-532145

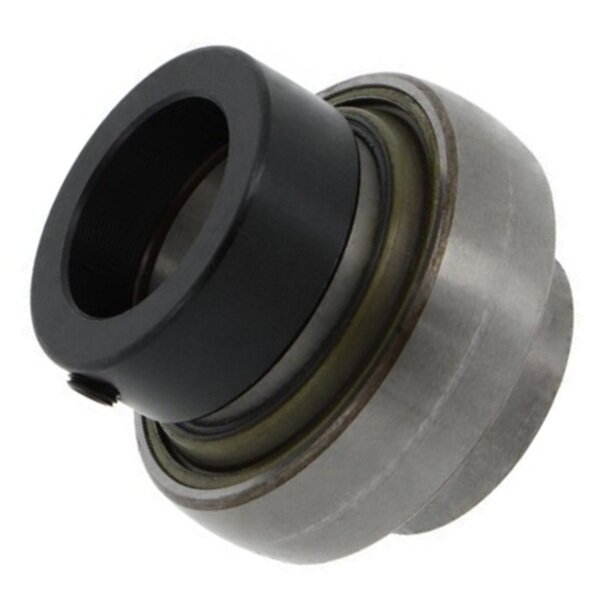

YEL 207-2DW/AG SKF 35mm Bearing Insert with Eccentric L ocking Collar
Also Try
SKF Plummer Block
SKF Square 4 Bolt Bearings FY, FYJ
2 Bolt FYT & FYTB
SKF Round 4 Bolt
SKF Take-up Units
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Bore Dia (d)
35mm
Fixing
Eccentric locking collar
Inner ring
Widened inner ring on both sides
Inner Ring Width (B)
37.6mm
Inside Dia (d)
35mm
Lubrication
Without lubrication hole(s)
Material
Standard bearing steel
Outer Ring Profile
Spherical
Outer Ring Width (C)
19mm
Outside Dia (D)
72mm
Seal
5-lip contact seal on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Total Width
51.1mm
Version
For agricultural machinery
Reference
YEL207-2DW/AG
Additional Reference:
10197573
Brand
SKF
Quick Order Code
BB-532145
Product Description
Insert bearing with an eccentric locking collar and extended inner ringInsert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
