Quick Code: BB-532229

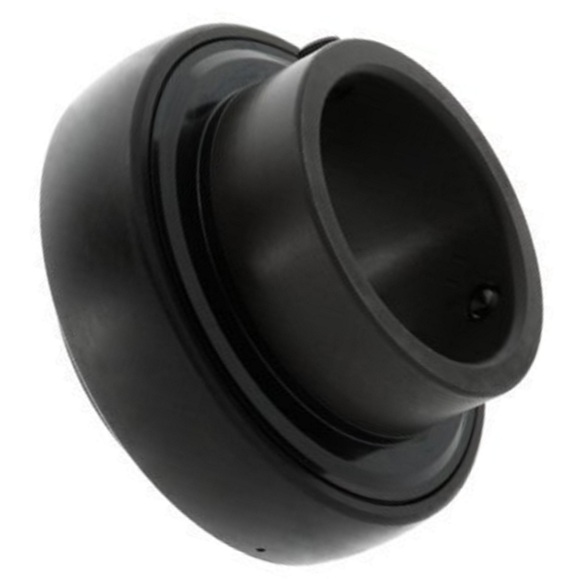

YAR 204-2F/VA201 SKF 20mm Bearing Insert with Grub Screws
Also Try
SKF Plummer Block
SKF Square 4 Bolt Bearings FY, FYJ
2 Bolt FYT & FYTB
SKF Round 4 Bolt
SKF Take-up Units
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Bore Dia (d)
20mm
Clearance
Extremely increased radial clearance
Fixing
Threaded pins
Inner ring
Widened inner ring on both sides
Inner Ring Width (B)
31mm
Inside Dia (d)
20mm
Material
Manganese phosphated rings
Material of rolling elements
Manganese phosphating rolling elements
Outer Ring Profile
Spherical
Outer Ring Width (C)
14mm
Outside Dia (D)
47mm
Seal
Double-sided sliding seal with centrifugal pulley
Temperature range
-40 to +250 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Total Width
31mm
Reference
YAR204-2F/VA201
Additional Reference:
10200428
Brand
SKF
Quick Order Code
BB-532229
Product Description
SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 deg C (660 deg F). This makes these products very suitable for applications in kiln trucks, roller hearth furnaces, and bakeries, where there are both constant and alternating directions of rotation.
