Quick Code: BB-515371

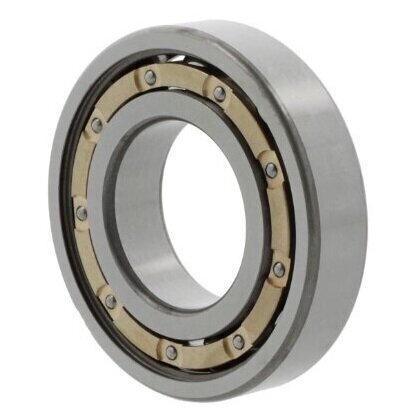

6319 M/P64 SKF Open Deep Groove Ball Bearing with Brass Cage 95mm x 200mm x 45mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
Strongly increased radial clearance
Current insulation
No current insulation
Inside Dia
95mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
200mm
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P6 / ABEC 3
Width
45mm
Reference
6319M/P64
Additional Reference:
10121790
Quick Order Code
BB-515371
Product Description
The 6319 M/P64 SKF Open Deep Groove Ball Bearing is a high-performance precision component designed for demanding industrial applications. Manufactured by SKF, the world's leading bearing manufacturer, this bearing combines robust engineering with exceptional reliability and versatility.
Key Features:
- Single row deep groove ball bearing design
- Brass cage for enhanced stability and performance
- Open design allowing direct lubrication and maintenance
- Cylindrical bore configuration
- Strongly increased radial clearance
- Tolerance class P6 / ABEC 3 precision
Technical Specifications:
- Inside Diameter: 95mm
- Outside Diameter: 200mm
- Width: 45mm
- Material: Standard bearing steel
- Rolling Elements: Standard bearing steel
- Temperature Range: -20°C to +120°C
- Outer Ring: Without flange/groove
- Current Insulation: None
Typical Applications:
- Heavy industrial machinery
- Large electric motors
- Pumps and compressors
- Mining equipment
- Construction and agricultural machinery
- High-speed rotating equipment
Advantages:
- Excellent lubrication accessibility
- High precision tolerance class
- Robust brass cage for improved stability
- Wide operating temperature range
- Versatile design suitable for multiple industrial applications
The 6319 M/P64 SKF bearing offers engineers and maintenance professionals a reliable solution for applications requiring high-performance, precision rotational components. Its open design and brass cage ensure optimal performance and extended operational life in challenging industrial environments.
