Quick Code: BB-514051

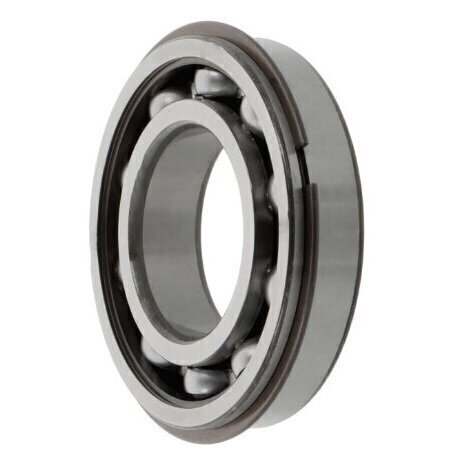

6314-ZNR SKF Deep Groove Ball Bearing with Shield on One Side Only 70mm x 150mm x 35mm
The 6314-ZNR SKF Deep Groove Ball Bearing is a high-performance precision bearing designed for robust and reliable operation across a wide range of industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this bearing offers exceptional performance and durability.
Key Features
- Single row deep groove ball bearing design
- Shield on one side only for partial contamination protection
- Sheet steel cage for improved durability
- Cylindrical bore for versatile mounting
- Normal radial clearance for optimal performance
- Operates across a wide temperature range from -20°C to +120°C
Technical Specifications
- Inside Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Material: Standard bearing steel
- Cage Material: Sheet steel
- Bore Type: Cylindrical
- Sealing: Shielded on One Side Only
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No
- Outer Ring: Ring groove with circlip
Typical Applications
- Heavy-duty industrial machinery
- Large electric motors
- Mining and construction equipment
- Power transmission systems
- Agricultural machinery
- Marine and offshore equipment
Performance Characteristics
This SKF deep groove ball bearing offers exceptional versatility with its unique one-sided shielding and robust construction. The partial sealing provides moderate protection against contaminants while allowing for effective lubrication, making it ideal for applications requiring reliable and smooth rotation in challenging environments.
With its substantial 70mm x 150mm x 35mm dimensions and ability to operate across a wide temperature range, the 6314-ZNR is a superior choice for engineers and maintenance professionals seeking a high-quality, adaptable bearing solution with enhanced durability and performance.
