Quick Code: BB-497087

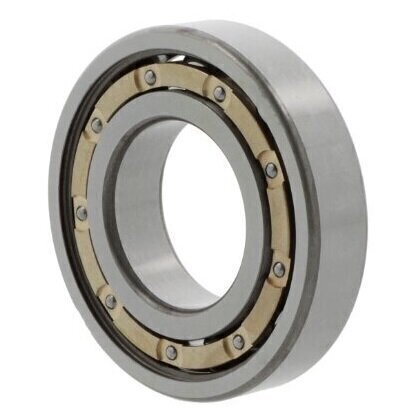

6313 M/C3 SKF Open Deep Groove Ball Bearing with Brass Cage 65mm x 140mm x 33mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
65mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
140mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
33mm
Reference
6313M/C3
Additional Reference:
10031596
Quick Order Code
BB-497087
Product Description
The 6313 M/C3 SKF Open Deep Groove Ball Bearing is a high-performance precision component designed for demanding industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this open deep groove ball bearing offers exceptional reliability and versatility.
Key Features:
- Single row deep groove ball bearing design
- Brass cage construction
- Cylindrical bore
- Slightly increased radial clearance (C3 designation)
- Dimensions: 65mm internal diameter, 140mm external diameter, 33mm width
Technical Specifications:
- Brand: SKF
- Material: Standard bearing steel
- Cage Material: Brass
- Sealing: Open bearing (no seals)
- Tolerance Class: P0/PN2 / ABEC 1
- Temperature Range: -20°C to +120°C
- Current Insulation: No
Typical Applications:
- Heavy-duty industrial machinery
- Construction equipment
- Mining and material handling systems
- Power transmission equipment
- Large electric motors
- Gearbox and transmission applications
Product Benefits:
- Robust open design allows for easy maintenance and relubrication
- Brass cage provides excellent heat resistance and wear protection
- Slightly increased radial clearance allows for better performance in high-temperature applications
- Manufactured to precise SKF engineering standards
The 6313 M/C3 SKF Open Deep Groove Ball Bearing is an ideal solution for engineers and maintenance professionals seeking a reliable, high-performance bearing for challenging industrial environments. Its open design and brass cage make it particularly suitable for applications requiring frequent lubrication and operating under moderate to high-temperature conditions.
