Quick Code: BB-506529

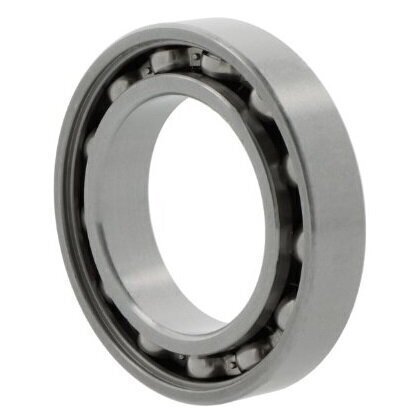

6309-Z/C4 SKF Deep Groove Ball Bearing with Shield on One Side Only 45mm x 100mm x 25mm
The 6309-Z/C4 SKF Deep Groove Ball Bearing is a high-performance, precision-engineered bearing designed for demanding industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this robust component offers exceptional reliability and versatility.
Key Features:
- Single row deep groove ball bearing design
- Large 45mm x 100mm x 25mm dimensions for heavy-duty applications
- Shielded on one side for partial protection
- Sheet steel cage for enhanced durability
- Strongly increased radial clearance for improved performance
- Standard bearing steel construction
- Cylindrical bore type
- Operating temperature range: -20°C to +120°C
- Tolerance class P0/PN2 / ABEC 1
- No current insulation
Technical Specifications:
- Inside Diameter: 45mm
- Outside Diameter: 100mm
- Width: 25mm
- Bore Type: Cylindrical
- Cage Material: Sheet steel
- Sealing: One-sided shield
Typical Applications:
- Heavy industrial machinery
- Power transmission equipment
- Mining and construction equipment
- Large electric motors
- Conveyor systems
- Agricultural machinery
- Automotive components
The partially shielded design offers a balance between protection and accessibility, making this bearing ideal for applications requiring some contamination protection while maintaining easy lubrication and maintenance. With SKF's renowned engineering expertise, the 6309-Z/C4 ball bearing provides reliable performance in challenging operational environments, offering excellent load-carrying capacity and precision.
Constructed from high-quality standard bearing steel, this bearing ensures long-lasting durability and consistent performance across a wide range of industrial applications.
