Quick Code: BB-496952

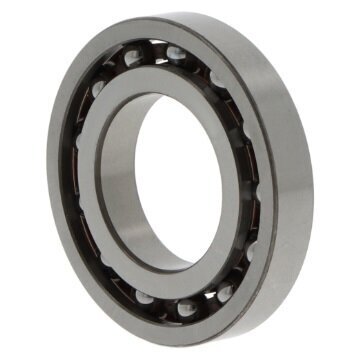

6306 TN9/C4 SKF Open Deep Groove Ball Bearing 30mm x 72mm x 19mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Polyamide cage
Clearance
Strongly increased radial clearance
Current insulation
No current insulation
Inside Dia
30mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
72mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
19mm
Reference
6306TN9/C4
Additional Reference:
10029961
Quick Order Code
BB-496952
Product Description
The SKF 6306 TN9/C4 is a high-performance open deep groove ball bearing designed for versatile industrial and mechanical applications. Manufactured by the world's leading bearing manufacturer, this robust bearing offers exceptional reliability and precision engineering.
Key Features
- Single row bearing configuration
- Cylindrical bore design
- Polyamide cage for enhanced durability
- Strongly increased radial clearance
- Standard bearing steel construction
- Open bearing design for maximum flexibility
Technical Specifications
- Inside Diameter: 30mm
- Outside Diameter: 72mm
- Width: 19mm
- Material: Standard bearing steel
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing: Open bearing (no seal)
- Current Insulation: No current insulation
Applications
This versatile bearing is ideal for use in:
- Electric motors
- Automotive systems
- Industrial machinery
- Agricultural equipment
- Pumps and compressors
- Conveyor systems
The open design allows for easy maintenance and inspection, while the polyamide cage provides excellent guidance and reduced friction. With its robust construction and wide temperature tolerance, this SKF bearing delivers consistent performance in challenging operational environments.
