Bearings
Ball Bearings
SKF Ball Bearings
Quick Code: BB-525423

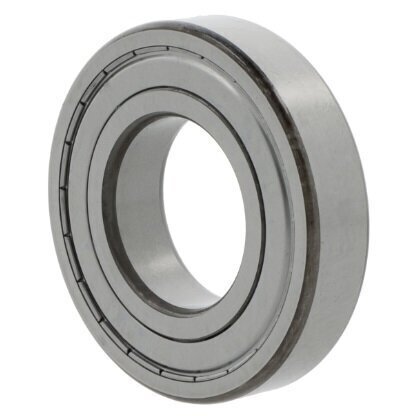

625-2Z/C3LHT23 SKF Shielded Deep Groove Ball Bearing 5mm x 16mm x 5mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller Bearings
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
5mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
16mm
Sealing
Shielded
Temperature range
+25 to +145 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
625-2Z/C3LHT23, 625-ZZ/C3LHT23
Additional Reference:
10152890
Quick Order Code
BB-525423
Product Description
The 625-2Z/C3LHT23 SKF Shielded Deep Groove Ball Bearing is a precision-engineered miniature bearing designed for high-performance applications requiring exceptional temperature resilience and compact dimensions.
Key Features:
- Single row deep groove ball bearing configuration
- Shielded design for enhanced protection against contaminants
- Lithium grease lubrication for extended performance
- Extremely wide operating temperature range: -50°C to +140°C
- Sheet steel cage for durability
- Slightly increased radial clearance (C3 classification)
- Cylindrical bore design
Technical Specifications:
- Inside Diameter: 5mm
- Outside Diameter: 16mm
- Width: 5mm
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No
Typical Applications:
- Precision electronic equipment
- Small motors and servo mechanisms
- Robotics and automation systems
- Medical devices
- Miniature instrumentation
- Aerospace and defense electronics
The 625-2Z/C3LHT23 offers exceptional performance in compact applications, providing reliable rotation and protection in challenging environmental conditions. Its advanced design and SKF quality ensure smooth operation and extended service life in demanding miniature bearing requirements.
