Quick Code: BB-505552

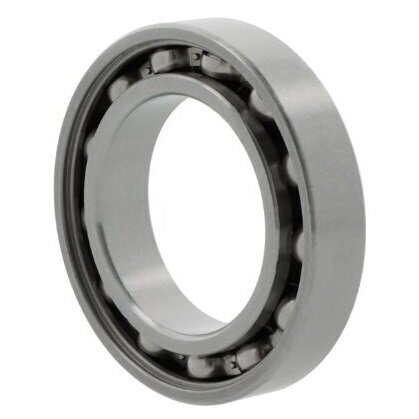

6217-Z/C3 SKF Deep Groove Ball Bearing with Shield on One Side Only 85mm x 150mm x 28mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
85mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
150mm
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
28mm
Reference
6217-Z/C3
Additional Reference:
10082377
Quick Order Code
BB-505552
Product Description
The 6217-Z/C3 SKF Deep Groove Ball Bearing is a robust, high-performance precision component designed for demanding industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this single row bearing offers exceptional reliability and versatility.
Key Features:
- Manufactured by SKF - globally recognized for superior quality
- Single row deep groove ball bearing design
- Shielded on one side for partial protection
- C3 clearance for optimal thermal expansion
- Large dimensions: 85mm inside diameter, 150mm outside diameter, 28mm width
- Sheet steel cage for durability
- Standard bearing steel construction
- Operating temperature range: -20 to +120°C
- Tolerance class P0/PN2 / ABEC 1
Typical Applications:
This versatile bearing is ideal for numerous heavy-duty industrial applications, including:
- Heavy machinery
- Construction equipment
- Mining machinery
- Large industrial motors
- Power generation equipment
- Material handling systems
Performance Characteristics:
- Cylindrical bore for precise fitting
- Slightly increased radial clearance for improved performance
- One-sided shield provides partial protection against contaminants
- No current insulation
The 6217-Z/C3 bearing offers enhanced flexibility with its unique one-sided shielding, providing moderate protection while allowing for easier maintenance. Its C3 clearance ensures smooth operation under varying temperature conditions, making it an excellent choice for applications requiring reliable performance in challenging environments.
Technical Details:
- Reference: 6217-Z/C3
- Brand: SKF
- Inside Diameter: 85mm
- Outside Diameter: 150mm
- Width: 28mm
- Sealing: Shielded on one side
