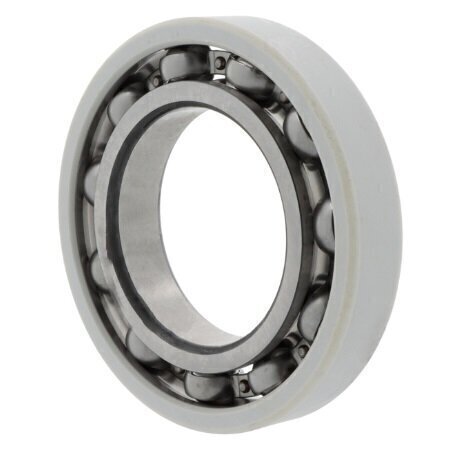

6217/C3VL0241 SKF Open Electrically Insulated Deep Groove Ball Bearing 85mm x 150mm x 28mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller Bearings
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
Current insulation of outer surfaces of the outer ring (up t
Inside Dia
85mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
150mm
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
28mm
Reference
6217/C3VL0241
Additional Reference:
10101456
Quick Order Code
BB-509246
Product Description
The 6217/C3VL0241 SKF Open Electrically Insulated Deep Groove Ball Bearing is a specialized precision component designed to address critical challenges in electrical machinery and high-performance industrial applications. This innovative INSOCOAT bearing offers advanced protection against electrical erosion while maintaining the exceptional performance characteristics of SKF's deep groove ball bearings.
Key Features:
- Unique electrically insulating coating on outer ring surfaces
- Prevents stray electric current passage through the bearing
- Protects against electrical erosion damage
- Reduces lubricant degradation from electric current discharge
- Single row deep groove design
- Sheet steel cage construction
- Open bearing configuration
Technical Specifications:
- Inside Diameter: 85mm
- Outside Diameter: 150mm
- Width: 28mm
- Material: Standard bearing steel
- Bore Type: Cylindrical
- Clearance: Slightly increased radial clearance
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -20°C to +120°C
Performance Advantages:
- Low friction characteristics
- Optimized for low noise and vibration
- Supports high rotational speeds
- Accommodates radial and axial loads in both directions
- Easy mounting and minimal maintenance
Typical Applications:
- Electric motors with electrical current challenges
- High-precision industrial machinery
- Electrical power generation equipment
- Advanced manufacturing systems
- Renewable energy equipment
- Sensitive electrical and electronic machinery
As a premium SKF product, this electrically insulated bearing represents cutting-edge engineering, providing engineers and maintenance professionals with a sophisticated solution for protecting critical rotating equipment from electrical damage while ensuring optimal performance and longevity.
