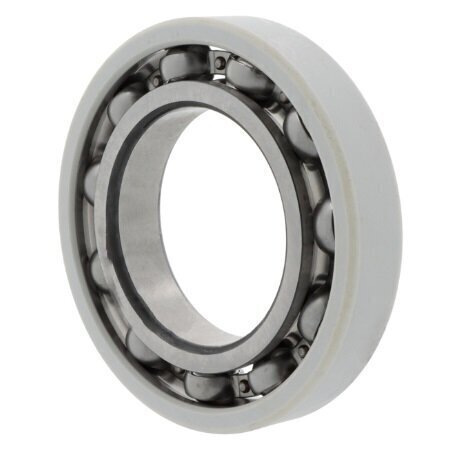

6216/C3VL0241 SKF Open Electrically Insulated Deep Groove Ball Bearing 80mm x 140mm x 26mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
Current insulation of outer surfaces of the outer ring (up t
Inside Dia
80mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
140mm
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
26mm
Reference
6216/C3VL0241
Additional Reference:
10101454
Quick Order Code
BB-509245
Product Description
The 6216/C3VL0241 SKF Open Electrically Insulated Deep Groove Ball Bearing is a specialized industrial bearing designed to address critical challenges in electrical machinery and high-performance applications where electrical current protection is paramount.
Key Features:
- Advanced INSOCOAT electrically insulating coating
- Protects against electrical erosion damage
- Prevents lubricant degradation from electric current discharge
- Single row deep groove ball bearing design
- Optimized for low noise and low friction operation
Technical Specifications:
- Dimensions:
- Inside Diameter: 80mm
- Outside Diameter: 140mm
- Width: 26mm
- Construction Details:
- Ball Rows: Single row
- Bore Type: Cylindrical bore
- Cage Material: Sheet steel
- Rolling Element Material: Standard bearing steel
- Sealing: Open bearing
- Current Insulation: Outer surfaces of outer ring
- Performance Characteristics:
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Radial Clearance: Slightly increased
Key Benefits:
- Accommodates radial and axial loads in both directions
- Easy mounting and installation
- Reduced maintenance requirements
- Enables high rotational speeds
Typical Applications:
- Electric motors in high-current environments
- Industrial machinery with electrical interference risks
- Power generation equipment
- Electrical motor-driven industrial systems
- Renewable energy equipment
The 6216/C3VL0241 offers a sophisticated solution for protecting critical mechanical systems from electrical current-related degradation, combining SKF's engineering expertise with advanced electrical insulation technology. Its unique design ensures optimal performance and longevity in challenging electrical environments.
