Bearings
Ball Bearings
SKF Ball Bearings
Quick Code: BB-499788

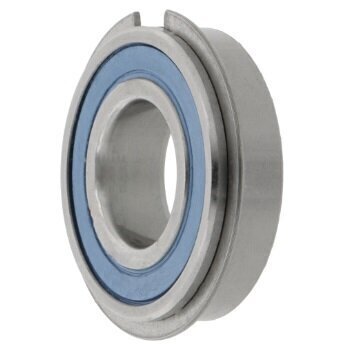

6206-2RS1NR SKF Sealed Deep Groove Ball Bearing 30mm x 62mm x 16mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
30mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Ring groove with circlip on outer ring
Outside Dia
62mm
Seal Type
Contact seals on both sides
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
16mm
Reference
6206-2RS1NR
Additional Reference:
10055780
Quick Order Code
BB-499788
Product Description
The 6206-2RS1NR SKF Sealed Deep Groove Ball Bearing is a high-performance, precision-engineered bearing designed for reliable and versatile industrial applications. Manufactured by SKF, the world's leading bearing manufacturer, this bearing offers exceptional durability and performance across various challenging environments.
Key Features:
- Single row deep groove ball bearing design
- Sealed on both sides with contact seals for enhanced protection
- Cylindrical bore for flexible mounting options
- Sheet steel cage for improved stability
- Normal radial clearance for optimal performance
Technical Specifications:
- Inside Diameter: 30mm
- Outside Diameter: 62mm
- Width: 16mm
- Material: Standard bearing steel
- Cage Type: Sheet steel
- Seal Type: Contact seals on both sides
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: None
- Outer Ring: Ring groove with circlip
Product Benefits:
- Sealed design provides excellent protection against contaminants
- Wide temperature operating range
- Suitable for high-precision applications
- Minimal maintenance requirements
- Consistent performance in challenging environments
Typical Applications:
- Electric motors
- Automotive systems
- Industrial machinery
- Conveyor systems
- Pumps and compressors
- Agricultural equipment
- General mechanical engineering
With SKF's renowned reputation for high-quality standards and innovation, the 6206-2RS1NR Sealed Deep Groove Ball Bearing provides engineers and maintenance professionals a reliable, sealed solution for demanding mechanical applications that require protection from external contaminants.
