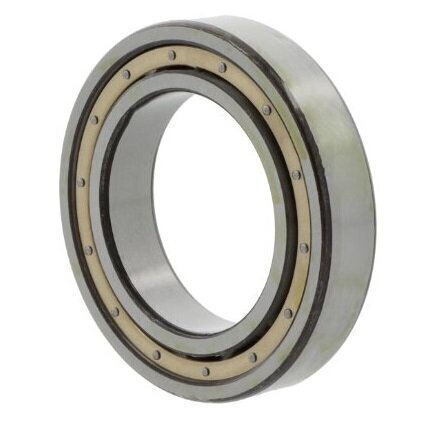

61860 MA SKF Open Deep Groove Ball Bearing 300mm x 380mm x 38mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
With an outer ring riding machined brass cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
300mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
380mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
38mm
Reference
61860MA
Additional Reference:
10028508
Quick Order Code
BB-496690
Product Description
The 61860 MA SKF Open Deep Groove Ball Bearing is a high-performance, precision component designed for demanding industrial and mechanical applications. As a single row deep groove ball bearing from the world's leading bearing manufacturer, this bearing offers exceptional reliability and versatility.
Key Features:
- Manufactured by SKF, the global leader in bearing technology
- Single row deep groove ball bearing design
- Open type bearing with no seals for maximum versatility
- Cylindrical bore for flexible mounting options
- Outer ring with machined brass cage for enhanced stability
- Standard bearing steel construction for durability
- Normal radial clearance for optimal performance
Technical Specifications:
- Inside Diameter: 300mm
- Outside Diameter: 380mm
- Width: 38mm
- Material: Standard bearing steel
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing Type: Open (no current insulation)
- Cage Type: Outer ring riding machined brass cage
Typical Applications:
- Heavy industrial machinery
- Large electric motors
- Conveyor systems
- Mining equipment
- Construction machinery
- Large-scale manufacturing equipment
Key Benefits:
- Superior SKF engineering and quality
- Robust and reliable performance
- Versatile open design allows for easy maintenance and relubrication
- Wide temperature operating range
- Suitable for high-load and precision applications
Choose the 61860 MA SKF Open Deep Groove Ball Bearing for a dependable, high-quality solution to your most challenging rotational motion requirements.
