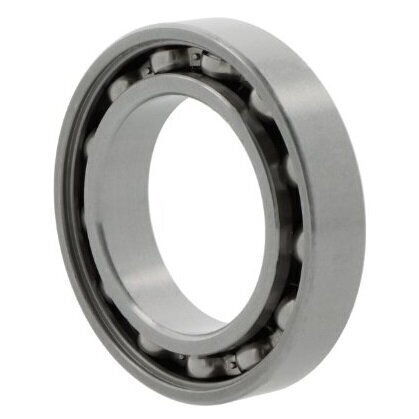

6024-Z SKF Deep Groove Ball Bearing with Shield on One Side Only 120mm x 180mm x 28mm
The 6024-Z SKF Deep Groove Ball Bearing is a high-performance precision bearing designed for robust industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this deep groove ball bearing offers exceptional reliability and versatility.
Key Features:
- Single row deep groove ball bearing design
- Shielded on one side for enhanced protection
- Cylindrical bore with standard bearing steel construction
- Sheet steel cage for durability
- Normal radial clearance
- Precise dimensions: 120mm inside diameter x 180mm outside diameter x 28mm width
- Temperature range: -20°C to +120°C
- Tolerance class P0/PN2 (ABEC 1)
Technical Specifications:
- No current insulation
- Outer ring without flange/groove
- Material of rolling elements: Standard bearing steel
Typical Applications:
- Heavy industrial machinery
- Manufacturing equipment
- Automotive systems
- Power transmission systems
- Large-scale mechanical assemblies
The one-sided shield provides superior protection against contaminants like dust and moisture while allowing for efficient lubrication. This design ensures extended bearing life and reduced maintenance requirements. With SKF's renowned quality and engineering expertise, the 6024-Z bearing delivers consistent performance in demanding industrial environments.
Note: Proper installation, alignment, and maintenance are crucial to maximize the bearing's performance and longevity.
