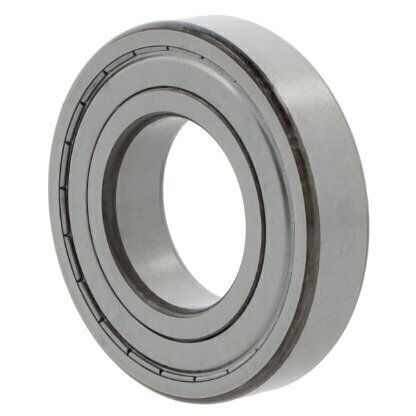

6009-2Z/C3GJN SKF Shielded Deep Groove Ball Bearing 45mm x 75mm x 16mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller Bearings
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Greasing
High temperature grease
Inside Dia
45mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
75mm
Sealing
Shielded
Temperature range
+40 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
16mm
Reference
6009-2Z/C3GJN, 6009-ZZ/C3GJN
Additional Reference:
10105598
Quick Order Code
BB-510408
Product Description
The 6009-2Z/C3GJN SKF Shielded Deep Groove Ball Bearing is a high-performance precision bearing designed for demanding industrial and mechanical applications. Manufactured by SKF, the worlds leading bearing manufacturer, this bearing combines durability, reliability, and exceptional engineering.
Key Technical Specifications:
- Dimensions:
- Inside Diameter: 45mm
- Outside Diameter: 75mm
- Width: 16mm
- Construction Features:
- Single row ball bearing
- Cylindrical bore
- Sheet steel cage
- Shielded design for protection
- Without flange/groove on outer ring
- Material Specifications:
- Made from standard bearing steel
- Slightly increased radial clearance (C3 classification)
- Tolerance class: P0/PN2 / ABEC 1
Performance Characteristics:
- Operating Temperature Range: +40°C to +150°C
- High temperature grease lubrication
- No current insulation
- Shielded design for enhanced protection against contamination
Typical Application Areas:
- Electric motors
- Automotive systems
- Pumps and compressors
- Agricultural machinery
- Conveyor systems
- General industrial equipment
- Precision machinery requiring sealed protection
This versatile SKF bearing offers reliable performance and long service life across diverse mechanical and industrial environments. Its shielded design provides excellent protection against dust, dirt, and moisture, making it ideal for challenging operational conditions where contamination prevention is crucial. The slightly increased radial clearance and high-temperature grease ensure optimal performance under varying operational stresses.
