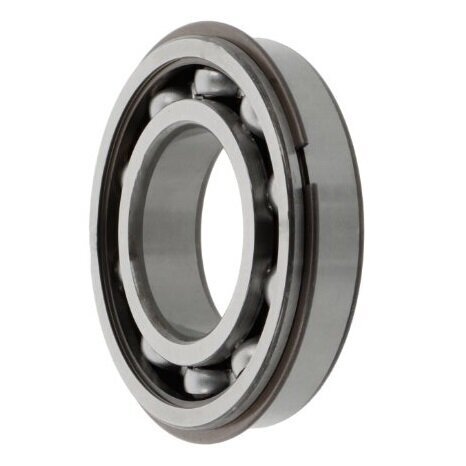

314-ZNR SKF Deep Groove Ball Bearing with Shield on One Side Only 70mm x 150mm x 35mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
70mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Ring groove with circlip on outer ring
Outside Dia
150mm
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
35mm
Reference
314-ZNR
Additional Reference:
10120368
Quick Order Code
BB-514652
Product Description
The 314-ZNR SKF Deep Groove Ball Bearing is a high-performance precision bearing designed for robust industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this single-row deep groove ball bearing offers exceptional reliability and versatility.
Key Technical Specifications:
- Dimensions:
- Inside Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Bore Type: Cylindrical bore
- Ball Rows: Single row
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Sealing: Shielded on one side
- Outer Ring: Ring groove with circlip
- Clearance: Normal radial clearance
- Tolerance Class: P0/PN2 / ABEC 1
- Temperature Range: -20°C to +120°C
- Current Insulation: No current insulation
Typical Applications:
- Heavy industrial machinery
- Construction equipment
- Mining machinery
- Large electric motors
- Pumps and compressors
- Automotive and transportation systems
- Agricultural machinery
Product Benefits:
- One-sided shielding provides partial protection against contaminants
- Circlip groove on outer ring ensures secure installation
- Designed for moderate to high-load applications
- Suitable for wide temperature ranges
- Manufactured to SKF's rigorous quality standards
- Excellent performance in challenging industrial environments
The 314-ZNR SKF Deep Groove Ball Bearing offers outstanding durability and reliable performance. Its unique one-sided shielding design provides selective protection while the circlip groove ensures stable positioning. With its robust construction and versatile design, this bearing is ideal for demanding industrial applications that require precision, reliability, and long-term performance.
