Bearings
Ball Bearings
SKF Ball Bearings
Quick Code: BB-510081

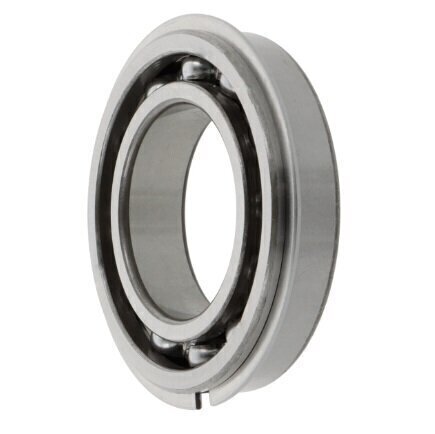

314 NR SKF Open Deep Groove Ball Bearing 70mm x 150mm x 35mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller Bearings
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
70mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Ring groove with circlip on outer ring
Outside Dia
150mm
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
35mm
Reference
314NR
Additional Reference:
10104376
Quick Order Code
BB-510081
Product Description
The 314 NR SKF Open Deep Groove Ball Bearing is a high-performance precision bearing designed for demanding industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this robust single-row ball bearing offers exceptional reliability and versatility across diverse operating environments.
Technical Specifications:
- Dimensional Details:
- Inside Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Construction Characteristics:
- Single row bearing configuration
- Open design (no sealing)
- Cylindrical bore
- Sheet steel cage
- Outer ring with circlip groove
- Material and Performance:
- Rolling elements made of standard bearing steel
- Normal radial clearance
- Temperature range: -20°C to +120°C
- Tolerance class: P0/PN2 / ABEC 1
- No current insulation
Typical Applications:
This versatile SKF bearing is ideal for a wide range of industrial and mechanical systems, including:
- Electric motors and generators
- Automotive and transportation equipment
- Agricultural machinery
- Industrial gearboxes and transmission systems
- Pumps and compressor assemblies
Performance Benefits:
With SKF's renowned engineering excellence, the 314 NR bearing provides reliable performance, reduced friction, and extended operational life. The open design allows for easy relubrication and is suitable for applications where external contamination is minimal.
