Quick Code: BB-515266

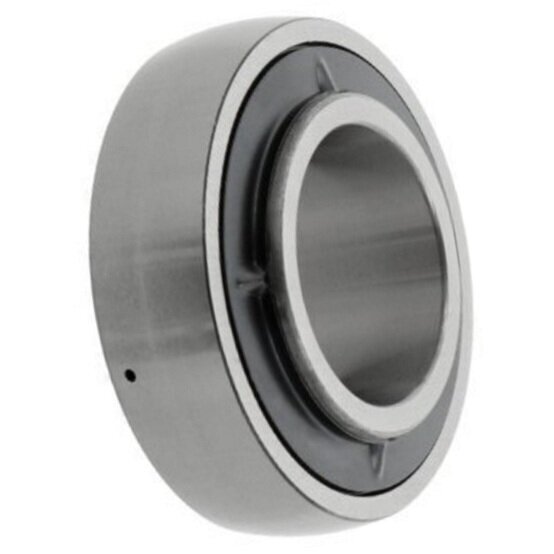

UK217 D1 RHP Bearing Insert
Also Try
SLFE Pressed Steel 4 Bolt Flanged
Bearing Adaptor Sleeves
Dunlop & Budget Ball Bearings
SKF Ball Bearings
SKF Bearing Inserts
Withdrawal sleeves
Solid Stainless Steel Linear Shaft
Buy Now
Product Specification
Bore
Tapered bore (1:12)
Bore Size (d)
85mm
Brand
RHP
Cage
Sheet steel cage
Fixing
Adapter sleeve
Inner Race Width (B)
46mm
Inner ring
Widened inner ring on both sides
Lubrication
Relubricatable
Material
Standard bearing steel
Outer Ring Profile
Spherical
Outside Dia (D)
150mm
Seal
Double-sided sliding seal with centrifugal pulley
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Reference
UK217D1
Additional Reference:
10246113
Quick Order Code
BB-515266
Product Description
UK217 D1 RHP Radial insert ball bearing
