Quick Code: BB-670952

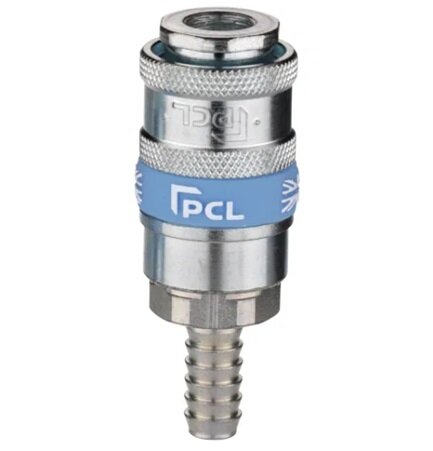

5/16inch PCL Hose Tail Airflow Coupling
Also Try
PCL Airflow Female Couplings
PCL Airflow Hose Tail Adaptor
PCL Airflow Male Couplings
PCL Airflow Male Standard Adaptor
PCL Airflow Twin Couplings
Buy Now
Qty:
Product Specification
Hose ID
5/16inch
Reference
AC21S
Brand
PCL
Quick Order Code
BB-670952
Product Description
The Airflow Coupling is the original quick release PCL with around 75 years of design enhancement. This product, along with the Standard Adaptor, is still manufactured in the UK to the highest possible standards, with the Made in Sheffield Airflow series now a benchmark in the UK for quality and reliability.Suitable for most compressed air applications - particularly fixed applications where the coupling is used over a workbench and a single action is preferred.
Shipping Weight (kg): 0.114
Old Skus: AC21S02
EAN: 5014875331157
Brand: PCL
Coupling Style: Coupling
Thread Type: Hose Tailpiece
Thread Size: for 7.9 mm (5/16 in) hose
Nominal Bore (mm): 5
Flow Rate: 43 cfm @ 100 psi
Maximum Working Pressure: 14 bar / 200 psi
Temperature Range: -40 deg C to 100 deg C
Material: Steel
Interchange: Rectus 19, Kee 057 Series, OETIKER SC Series P, Ludecke ESB
