Bearings
Ball Bearings
NTN Ball Bearings
Quick Code: BB-519419

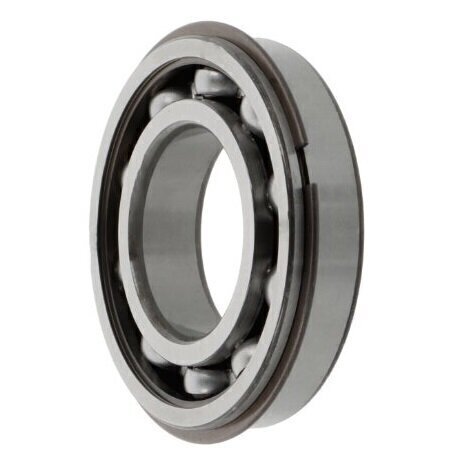

6312 ZNR NTN Ball Bearing with Shield on One Side Only 60mm x 130mm x 31mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inner dimension
60mm
Inside Dia
60mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer dimension
130mm
Outer ring
Ring groove with circlip on outer ring
Outside Dia
130mm
Seal Type
Cover on one side
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
31mm
Reference
6312ZNR
Additional Reference:
10149306
Quick Order Code
BB-519419
Product Description
6312 ZNR NTN Deep Groove Ball Bearing
