Quick Code: BB-524470

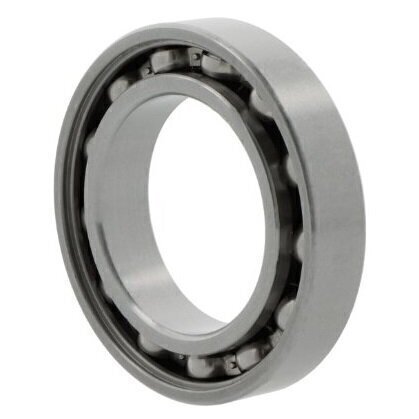

6309 ZC4 NTN Ball Bearing with Shield on One Side Only 45mm x 100mm x 25mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Strongly increased radial clearance
Current insulation
No current insulation
Inside Dia
45mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
100mm
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
25mm
Reference
6309ZC4
Additional Reference:
10149260
Quick Order Code
BB-524470
Product Description
6309 ZC4 NTN Deep Groove Ball Bearing
