Quick Code: BB-519387

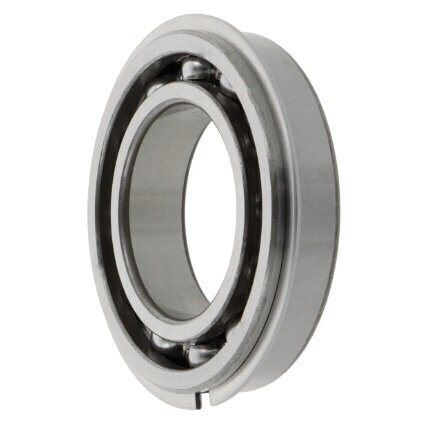

6308 NRC3 NTN Open Ball Bearing 40mm x 90mm x 23mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inner dimension
40mm
Inside Dia
40mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer dimension
90mm
Outer ring
Ring groove with circlip on outer ring
Outside Dia
90mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
23mm
Reference
6308NRC3
Additional Reference:
10149242
Quick Order Code
BB-519387
Product Description
6308 NRC3 NTN Deep Groove Ball Bearing
