Bearings
Ball Bearings
NTN Ball Bearings
Quick Code: BB-506507

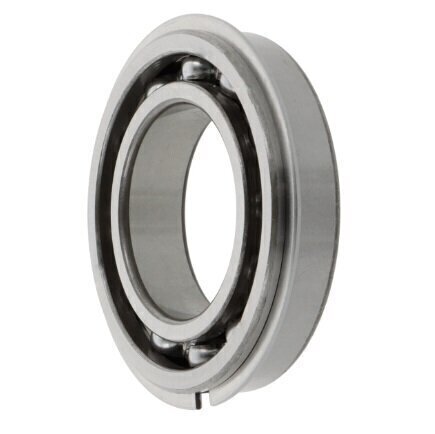

6216 NR NTN Open Ball Bearing 80mm x 140mm x 26mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inner dimension
80mm
Inside Dia
80mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer dimension
140mm
Outer ring
Ring groove with circlip on outer ring
Outside Dia
140mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
26mm
Reference
6216NR
Additional Reference:
10149126
Quick Order Code
BB-506507
Product Description
6216 NR NTN Deep Groove Ball Bearing
