Quick Code: BB-495046

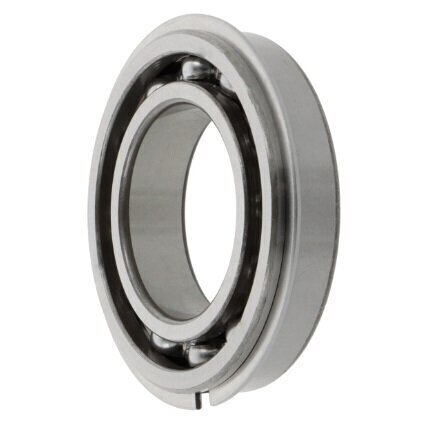

6209 NR NTN Open Ball Bearing 45mm x 85mm x 19mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inner dimension
45mm
Inside Dia
45mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer dimension
85mm
Outer ring
Ring groove with circlip on outer ring
Outside Dia
85mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
19mm
Reference
6209NR
Additional Reference:
10149071
Quick Order Code
BB-495046
Product Description
6209 NR NTN Deep Groove Ball Bearing
