Quick Code: BB-518949

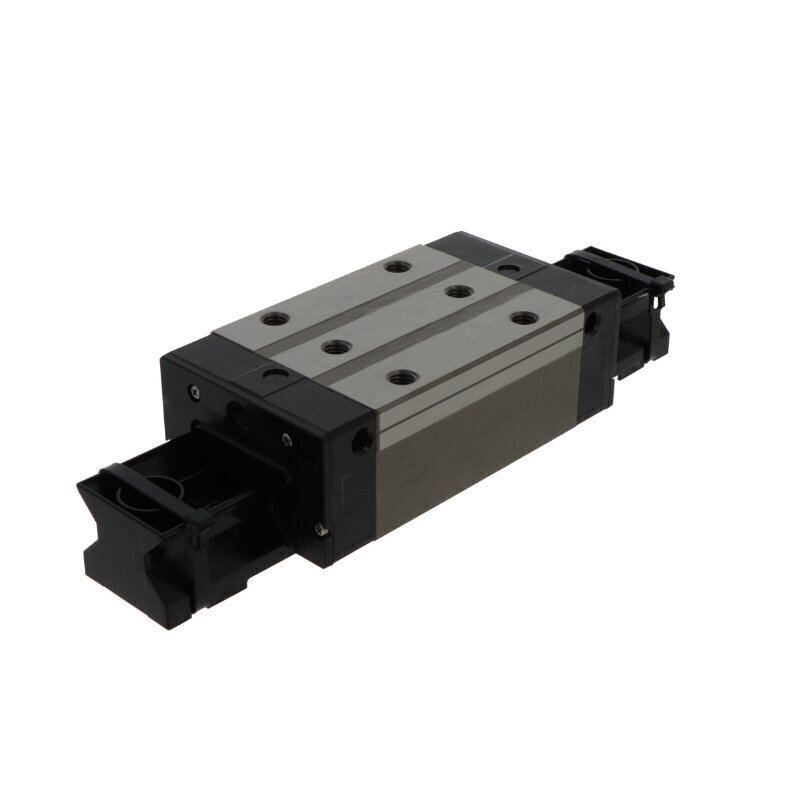

RAA55 ALP6Z NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
55 series
Temperature range
-40 to +80 °C
Tolerance class
P6
Type of rolling elements
Rollers
Version
Low design
Reference
RAA55ALP6Z
Additional Reference:
10131556
Quick Order Code
BB-518949
Product Description
The RAA55 ALP6Z NSK Carriage is a precision-engineered linear motion component designed for high-performance industrial applications requiring smooth, accurate linear travel with exceptional load capacity. Part of NSK's 55 series of precision carriages, this flange carriage design combines robust construction with advanced engineering to deliver reliable guidance solutions across demanding environments.
Key Features:
- Four-Row Roller Configuration: Superior load capacity and stability with four rows of precision roller rolling elements, ideal for heavy-duty applications
- Block Carriage Design: Versatile form factor suitable for diverse mounting applications and space-constrained environments
- Low Design Version: Compact profile optimized for applications with height restrictions while maintaining exceptional performance characteristics
- Durable Construction: Steel and plastic materials engineered for longevity and reliable performance in demanding industrial settings
- Light Preload Specification: Optimized for smooth operation and extended service life with reduced friction
- Advanced Sealing System: End seals and sealing strips provide comprehensive contamination protection for extended operational reliability
- Relubrication Capability: Integrated lubrication nipple enables convenient maintenance and relubrication throughout the carriage's service life
- No Ball Chain Design: Simplified operation with roller-based configuration for consistent performance
- P6 Tolerance Class: Precision manufacturing ensures superior accuracy and interchangeability for demanding precision applications
- Wide Temperature Range: Operates effectively between -40 to +80°C for versatile environmental applications
Ideal Applications:
The RAA55 ALP6Z is well-suited for heavy-duty automation systems, industrial machinery, CNC equipment, and other applications requiring reliable linear guidance solutions with enhanced load capacity and precision performance in compact configurations.
