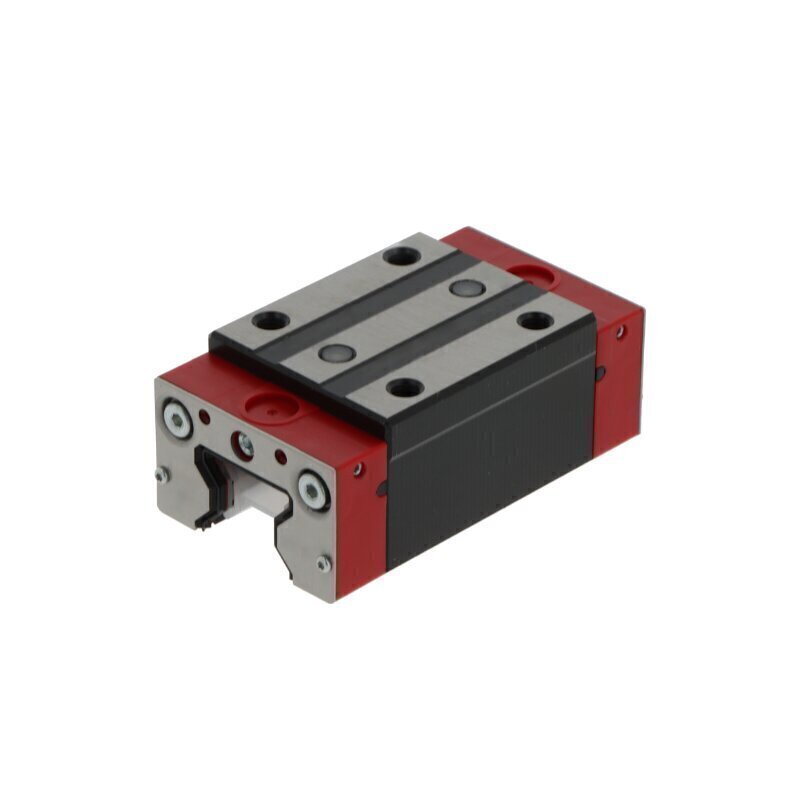

RAA45 ANP6Z NSK Carriage
The RAA45 ANP6Z NSK Carriage is a precision-engineered linear motion component designed for high-performance industrial applications requiring superior load capacity and exceptional accuracy. This block carriage delivers smooth, reliable linear travel across demanding automation and machinery environments, featuring a robust high design optimized for applications requiring increased rigidity and load distribution.
Key Specifications:
- Design: Block carriage configuration for versatile mounting applications
- Series: 45 series — part of NSK's comprehensive range of precision carriages
- Rolling Elements: Four-row roller type configuration providing superior load capacity, stability, and durability
- Version: High design — optimized for applications requiring increased rigidity and enhanced load distribution capabilities
- Preload: Light preload specification for smooth operation and reduced friction
- Tolerance Class: P6 precision standard for demanding precision applications requiring tighter tolerances than standard PN class
Construction & Durability:
- Materials: Durable steel and plastic construction for long-term reliability and performance
- Sealing: End seals and sealing strips protect against contamination and environmental hazards
- Temperature Range: Operates effectively from -40 to +80°C, suitable for diverse environmental conditions
- Rolling Element Type: Roller configuration for enhanced load-carrying capacity and durability compared to ball configurations
Maintenance & Operation:
- Lubrication: Can be relubricated via lubrication nipple for easy maintenance and extended service life
- Ball Chain: Without ball chain design for streamlined installation and compact integration
Ideal Applications:
Perfect for heavy-duty CNC machinery, high-load automation systems, precision robotics, material handling equipment, industrial automation, and other demanding applications where reliable linear guidance, exceptional load capacity, and precision performance are critical requirements. The P6 tolerance class makes this carriage particularly suitable for applications requiring tighter accuracy specifications than standard tolerances.
