Quick Code: BB-518934

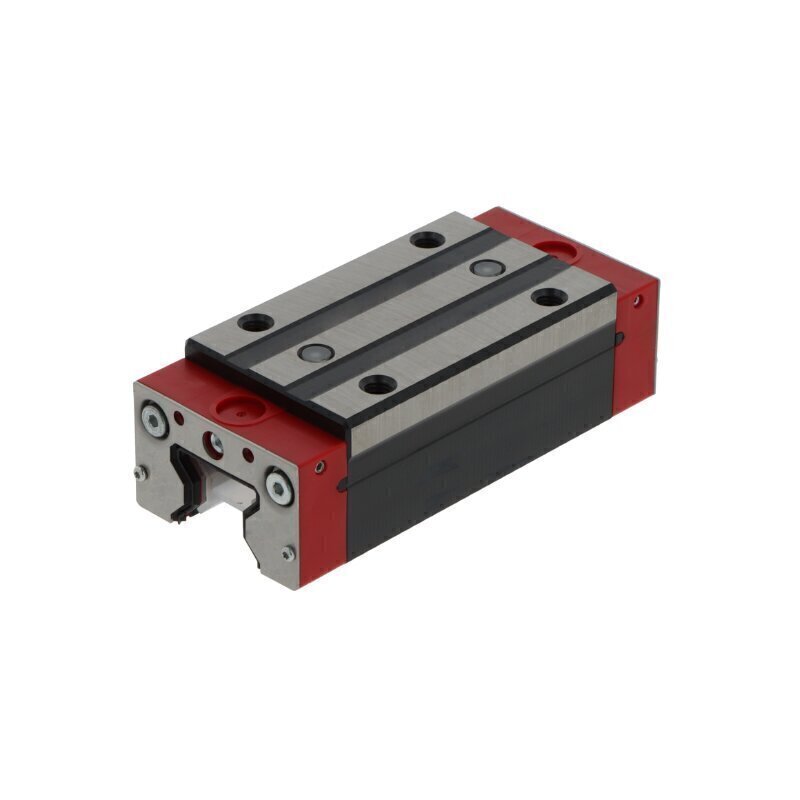

RAA25 BNP6Z NSK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
INA Carriages
Schneeberger Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-40 to +80 °C
Tolerance class
P6
Type of rolling elements
Rollers
Version
High and long design
Reference
RAA25BNP6Z
Additional Reference:
10131513
Quick Order Code
BB-518934
Product Description
The RAA25 BNP6Z NSK Carriage is a precision-engineered linear motion component designed for high-performance industrial applications requiring smooth, accurate linear travel with exceptional load capacity. This block carriage combines advanced engineering with robust construction to deliver reliable linear guidance in demanding environments.
Key Specifications
- Series: 25 series
- Design: Block carriage with high and long design
- Rolling Elements: Four-row roller configuration for superior load capacity and stability
- Tolerance Class: P6 (precision-grade)
- Material: Durable steel and plastic construction
- Preload: Light preload specification
Performance Features
- Temperature Range: -40 to +80°C for reliable operation across diverse environments
- Sealing System: End seals and sealing strips provide comprehensive contamination protection
- Lubrication: Relubrication capability via lubrication nipple for extended service life and easy maintenance
- Ball Chain: Without ball chain configuration
Ideal Applications
The RAA25 BNP6Z is engineered for:
- Automation systems requiring precise linear positioning
- CNC machinery and precision manufacturing equipment
- Robotics and industrial automation
- Heavy-load linear guidance applications
- Demanding industrial equipment requiring reliable, high-capacity linear motion solutions
Reference: RAA25BNP6Z | Brand: NSK
