Quick Code: BB-532613

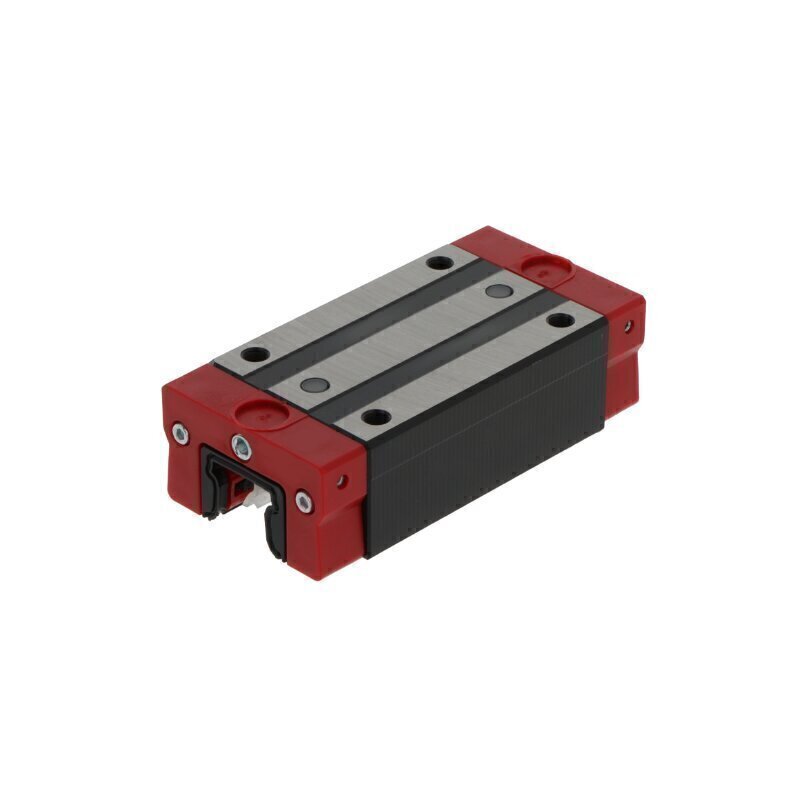

LAH15 BNZ NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
15 series
Temperature range
-40 to +80 °C
Tolerance class
PN
Type of rolling elements
Balls
Version
High and long design
Reference
LAH15BNZ
Additional Reference:
10203678
Quick Order Code
BB-532613
Product Description
The LAH15 BNZ NSK Carriage is a precision-engineered linear motion component designed for high-performance industrial applications requiring smooth, accurate linear travel with extended reach capabilities. Part of NSK's renowned 15 series, this block carriage delivers exceptional performance and reliability across diverse automation and machinery systems.
Key Specifications:
- Design: Block carriage configuration for optimal stability and load distribution
- Series: 15 series for compact yet robust linear guidance
- Rolling Elements: Four-row ball bearing system for superior load capacity and precision guidance
- Material: Durable steel and plastic construction for longevity and corrosion resistance
- Preload: Light preload specification for smooth operation and extended component life
- Lubrication: Relubrication via lubrication nipple for convenient maintenance and extended service intervals
- Sealing: End seals and sealing strips provide comprehensive contamination protection
- Tolerance Class: PN tolerance for reliable precision applications
- Temperature Range: -40 to +80°C for versatile environmental operation
- Version: High and long design variant for applications requiring increased vertical clearance and extended travel distances
- Ball Chain: Without ball chain for streamlined installation
Ideal Applications:
The LAH15 BNZ is perfectly suited for automation systems, CNC machinery, robotics, semiconductor equipment, material handling systems, and other demanding industrial applications requiring dependable linear guidance solutions with flexible height and extended reach requirements.
Brand: NSK | Reference: LAH15BNZ
