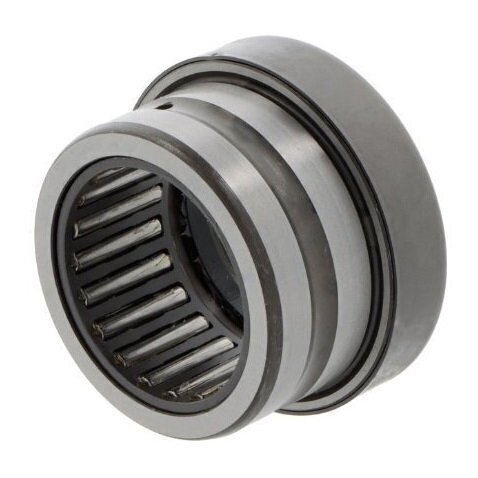

NKXR40Z SKF Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
SKF
Cage
Sheet steel cage
Inside Dia (Fw)
40mm
Interchangeable With
NBX4032Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
52mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Self-retaining
Width (C)
32mm
Reference
NKXR40-Z
Additional Reference:
10226929
Equivalent to:
NKXR40Z
Quick Order Code
BB-525891
Product Description
The NKXR40Z is a high-performance SKF Needle Roller/Cylindrical Roller Bearing with End Cap, engineered for precision mechanical applications requiring robust load-bearing capabilities.
Key Specifications:
- Inside Diameter: 40mm
- Outside Diameter: 52mm
- Width: 32mm
- Brand: SKF
- Interchangeable with: NBX4032Z
Technical Details:
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Lubrication: Designed for grease lubrication
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Direction: Single direction
- Version: Self-retaining
- Temperature Range: -20°C to +120°C
Ideal Applications:
- Transmission systems
- Gearbox assemblies
- Conveyor roller mechanisms
- Industrial machinery with moderate radial and axial load requirements
- Automotive power transmission components
This precision bearing features a sheet steel cage and is designed for reliable performance in demanding mechanical environments. Its compact design and robust construction make it an excellent choice for applications requiring precise rotational movement and load distribution.
