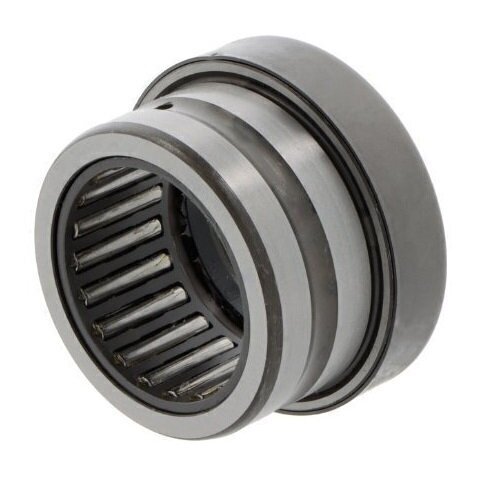

NKXR35Z-XL INA Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
35mm
Interchangeable With
NBX3530Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
47mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
30mm
Reference
NKXR35-Z-XL
Additional Reference:
10047463
Equivalent to:
NKXR35Z
Quick Order Code
BB-498497
Product Description
The NKXR35Z-XL is a high-performance INA Needle Roller/Cylindrical Roller Bearing with an integrated end cap, designed for precision mechanical applications requiring robust radial load support and mechanical stability.
Technical Specifications
- Brand: INA
- Inside Diameter (Fw): 35mm
- Outside Diameter (D): 47mm
- Width (C): 30mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Direct Interchange: NBX3530Z
- Operating Direction: Single direction bearing
- Lubrication: Designed for grease lubrication
- Temperature Range: -20°C to +120°C
Key Features
- Integrated end cap for enhanced stability and protection
- Sheet steel cage for durability
- Designed for grease lubrication
- Single direction bearing configuration
- Capable of handling high radial loads
- Precision-engineered with ABEC 1 tolerance class
Typical Applications
- Automotive transmissions
- Industrial gearboxes
- Conveyor systems
- Precision machinery
- Material handling equipment
- Mechanical systems requiring compact, high-performance bearings
Ideal for engineers and maintenance professionals seeking a reliable, precision bearing solution with excellent load-bearing capabilities and versatile performance across various industrial applications.
