Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-525888

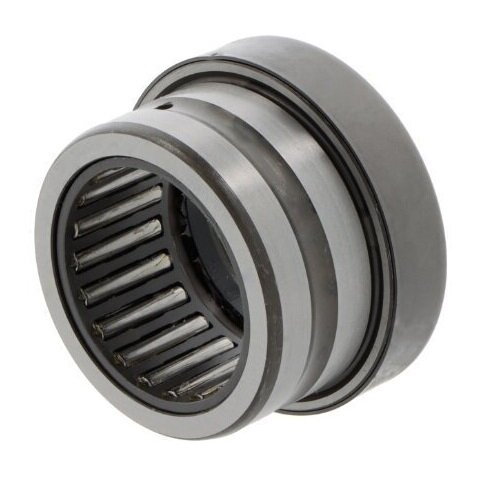

NKXR25Z NKE Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
NKE
Cage
Sheet steel cage
Inside Dia (Fw)
25mm
Interchangeable With
NBX2530Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
37mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
30mm
Reference
NKXR25-Z
Additional Reference:
10155511
Equivalent to:
NKXR25Z
Quick Order Code
BB-525888
Product Description
The NKXR25Z is a high-performance NKE Needle Roller/Cylindrical Roller Bearing with End Cap, engineered for precision mechanical applications requiring robust radial and axial load support.
Technical Specifications:
- Brand: NKE
- Inside Diameter: 25mm
- Outside Diameter: 37mm
- Width: 30mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Lubrication: Designed for grease lubrication
- Operating Direction: Single direction bearing
- Temperature Range: -20°C to +120°C
- Interchangeable With: NBX2530Z
Key Features:
- Precision-engineered with end cap for enhanced stability
- Capable of handling both radial and axial loads
- Sheet steel cage for durability and reliable performance
- Optimized for grease lubrication
- Wide temperature operating range
Typical Applications:
- Automotive transmission systems
- Industrial gearbox assemblies
- Conveyor mechanisms
- Precision mechanical equipment
- Power transmission systems
This NKE bearing offers exceptional performance in demanding environments, providing reliable support and smooth operation across various industrial and mechanical applications. Its compact design and robust construction make it an ideal solution for engineers and maintenance professionals seeking high-quality, precision bearings.
