Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-498492

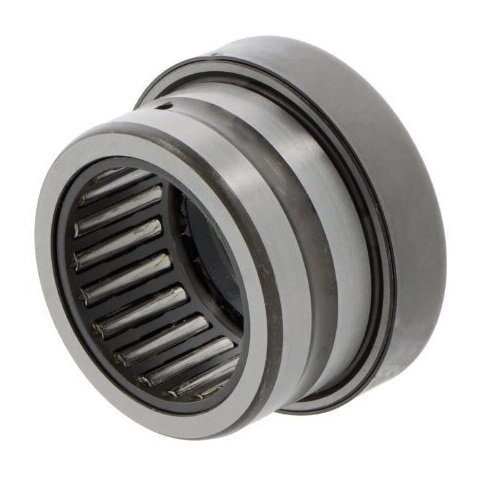

NKXR17Z-XL INA Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
17mm
Interchangeable With
NBX1725Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
26mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
25mm
Reference
NKXR17-Z-XL
Additional Reference:
10047455
Equivalent to:
NKXR17Z
Quick Order Code
BB-498492
Product Description
The NKXR17Z-XL is a precision INA Needle Roller/Cylindrical Roller Bearing with End Cap, engineered for reliable performance in compact mechanical applications requiring high precision and durability.
Key Specifications:
- Inside Diameter: 17mm
- Outside Diameter: 26mm
- Width: 25mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
Technical Characteristics:
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Direction: Single direction bearing
- Lubrication Type: Designed for grease lubrication
- Temperature Range: -20°C to +120°C
- Version: With end cap, axial component
- Interchangeable with: NBX1725Z model
Typical Applications:
- Transmission systems
- Gearbox assemblies
- Compact industrial machinery
- Automotive drivetrain components
- Precision mechanical equipment
The NKXR17Z-XL offers exceptional performance with its robust sheet steel cage and precision engineering, ensuring reliable operation in challenging mechanical environments.
