Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-525885

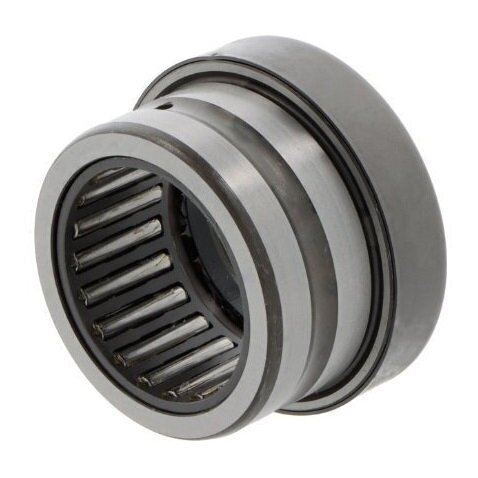

NKXR17Z NKE Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
NKE
Cage
Sheet steel cage
Inside Dia (Fw)
17mm
Interchangeable With
NBX1725Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
26mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
25mm
Reference
NKXR17-Z
Additional Reference:
10155507
Equivalent to:
NKXR17Z
Quick Order Code
BB-525885
Product Description
The NKXR17Z is a high-performance NKE Needle Roller/Cylindrical Roller Bearing with End Cap, designed for precision and reliability in compact mechanical applications.
Key Specifications:
- Inside Diameter: 17mm
- Outside Diameter: 26mm
- Width: 25mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
Product Features:
- Designed for grease lubrication
- Includes protective end cap
- Single direction bearing configuration
- Interchangeable with NBX1725Z model
- Operating temperature range: -20°C to +120°C
Typical Applications:
- Compact mechanical systems
- Light industrial machinery
- Small transmission systems
- Precision equipment
- Automotive components
This robust NKE needle roller bearing offers excellent performance in applications requiring precise radial and limited axial load support. The sheet steel cage and standard bearing steel construction ensure durability and reliable operation in various mechanical environments.
