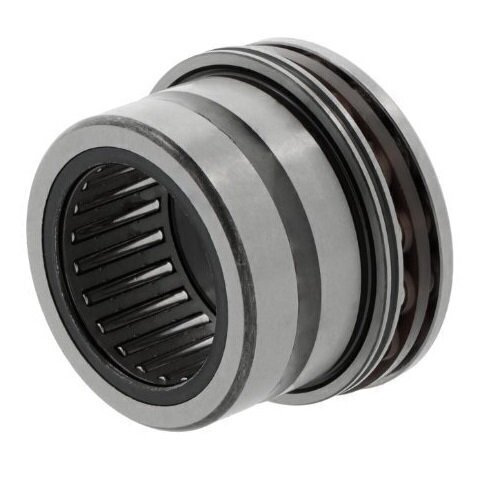

NX7-TV INA Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Polyamide cage
Inside Dia (Fw)
7mm
Lubrication
For oil lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
14mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Demountable
Width (C)
18mm
Reference
NX7-TV
Additional Reference:
10047614
Equivalent to:
NX7
Quick Order Code
BB-498593
Product Description
The NX7-TV INA Needle Roller/Thrust Ball Bearing is a versatile, compact precision bearing designed for demanding mechanical applications requiring efficient load management and space optimization.
Key Features
- Combined radial needle roller and thrust ball bearing design
- Accommodates both radial and axial loads in a single direction
- Low cross-sectional height ideal for space-constrained environments
- Separable/demountable construction
- Capable of operating at relatively high speeds
Technical Specifications
- Inside Diameter: 7mm
- Outside Diameter: 14mm
- Width: 18mm
- Cage Material: Polyamide
- Bearing Material: Standard bearing steel
- Lubrication: Oil lubrication
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
Potential Applications
- Automotive transmission systems
- Industrial machinery with limited installation space
- Precision mechanical equipment
- Robotics and automation systems
- High-speed rotating equipment
The NX7-TV offers engineers a compact, high-performance bearing solution capable of managing complex load dynamics while maintaining minimal spatial requirements.
