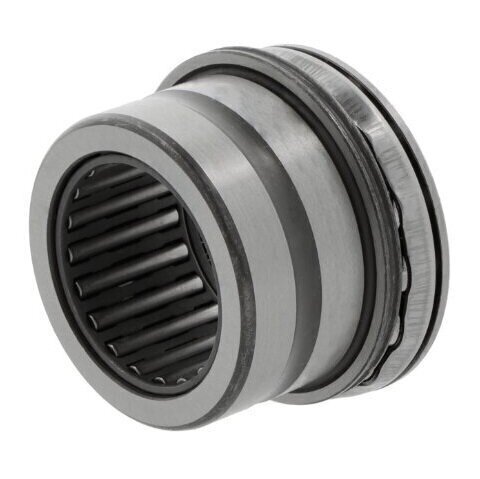

NX30 INA Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
30mm
Lubrication
For oil lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
42mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Demountable
Width (C)
30mm
Reference
NX30
Additional Reference:
10066113
Equivalent to:
NX30
Quick Order Code
BB-501768
Product Description
The NX30 INA Needle Roller/Thrust Ball Bearing is a versatile, high-performance precision bearing designed to meet complex load requirements in compact mechanical systems. This advanced bearing combines a radial needle roller bearing with a thrust ball bearing mechanism, offering exceptional performance in space-constrained applications.
Key Features:
- Dual-functionality design supporting both radial and axial loads in a single direction
- Separable bearing configuration for flexible installation
- Low cross-sectional height for compact mounting
- Capable of operating at relatively high speeds
- Sheet steel cage for enhanced durability
Technical Specifications:
- Inside Diameter (Fw): 30mm
- Outside Diameter (D): 42mm
- Width (C): 30mm
- Material: Standard bearing steel
- Temperature Range: -20°C to +120°C
- Lubrication: Oil lubrication
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Direction: Single direction bearing
Potential Applications:
- Automotive transmission systems
- Industrial machinery with complex load requirements
- Precision mechanical engineering
- Robotics and automated equipment
- Machinery requiring compact, high-speed load-bearing solutions
- Applications with limited space and need for efficient load management
Ideal for engineers and designers seeking a versatile, high-performance bearing solution that can efficiently manage both radial and thrust loads in a single, compact unit while maintaining operational flexibility.
