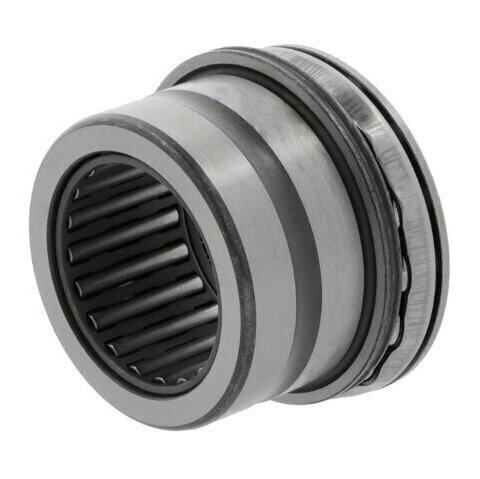

NX25 INA Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
25mm
Lubrication
For oil lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
37mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Demountable
Width (C)
30mm
Reference
NX25
Additional Reference:
10047610
Equivalent to:
NX25
Quick Order Code
BB-498589
Product Description
The NX25 INA Needle Roller/Thrust Ball Bearing is a precision-engineered, versatile bearing solution designed to handle complex load requirements in compact mechanical systems. This innovative bearing combines a radial needle roller bearing with a thrust ball bearing mechanism, offering exceptional performance in space-constrained applications.
Key Features:
- Dual-functionality design supporting both radial and axial loads in a single direction
- Low cross-sectional height for compact mounting
- Separable/demountable design for easy installation and maintenance
- High-speed operational capabilities
- Robust sheet steel cage construction
Technical Specifications:
- Inside Diameter: 25mm
- Outside Diameter: 37mm
- Width: 30mm
- Cage Material: Sheet steel
- Bearing Steel: Standard grade
- Temperature Range: -20°C to +120°C
- Lubrication: Oil lubrication
- Tolerance Class: P0/PN2 / ABEC 1
- Operational Direction: Single direction bearing
Ideal Applications:
- Precision machinery with limited installation space
- Automotive components
- Industrial robotics
- Mechanical transmission systems
- Precision measurement equipment
- Motion control mechanisms
- Material handling equipment
The NX25's unique design allows engineers and designers to efficiently manage complex load scenarios while maintaining compact dimensions. Its versatile configuration makes it an excellent solution for applications requiring a high-performance, space-efficient bearing solution that can handle both radial and thrust loads in a single, compact unit.
