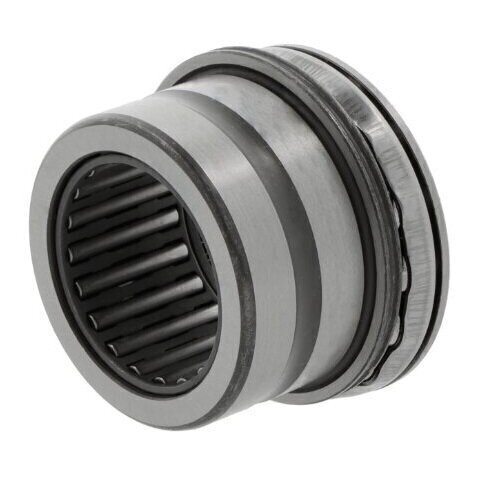

NX20 INA Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
20mm
Lubrication
For oil lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
30mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Demountable
Width (C)
28mm
Reference
NX20
Additional Reference:
10049103
Equivalent to:
NX20
Quick Order Code
BB-498956
Product Description
The NX20 INA Needle Roller/Thrust Ball Bearing is a high-performance, versatile bearing solution designed to excel in complex mechanical environments. This innovative bearing combines a radial needle roller bearing with a thrust ball bearing, providing exceptional load management capabilities in a compact and efficient package.
Key Features:
- Hybrid design supporting both radial and axial loads in a single direction
- Low cross-sectional height for space-constrained applications
- Demountable/separable design for easy installation and maintenance
- Capable of operating at high rotational speeds
- Open-ended configuration for oil lubrication
Technical Specifications:
- Bore Diameter: 20mm
- Outside Diameter: 30mm
- Width: 28mm
- Cage Material: Sheet steel
- Bearing Steel: Standard grade
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Lubrication: Oil lubrication
- Operational Direction: Single direction bearing
Potential Applications:
- Automotive transmission systems
- Industrial machinery with limited installation space
- Precision mechanical engineering equipment
- Robotics and motion control systems
- Compact mechanical devices requiring high-precision load management
Designed for reliability and performance, the NX20 INA Needle Roller/Thrust Ball Bearing provides an efficient solution for engineers and designers seeking a robust bearing that can handle complex load scenarios while maintaining a minimal footprint.
