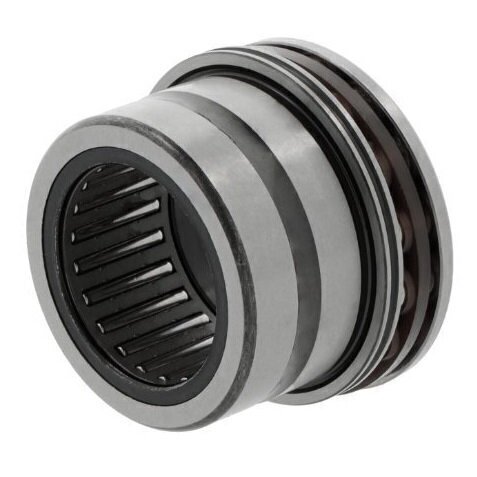

NKX10-TV INA Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Polyamide cage
Inside Dia (Fw)
10mm
Lubrication
For oil lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
19mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Demountable
Width (C)
23mm
Reference
NKX10-TV
Additional Reference:
10047433
Equivalent to:
NKX10
Quick Order Code
BB-498474
Product Description
The NKX10-TV INA Needle Roller/Thrust Ball Bearing is a precision engineered component designed for versatile mechanical applications requiring compact and efficient load-bearing performance.
Key Product Characteristics
- Innovative combined bearing design integrating radial needle roller and thrust ball bearing technologies
- Capable of handling both radial and axial loads simultaneously in a single direction
- Ultra-low cross-sectional height for space-constrained installations
- Demountable/separable design for flexible mounting options
- High-speed operational capabilities
Technical Specifications
- Bore Diameter: 10mm
- Outer Diameter: 19mm
- Width: 23mm
- Cage Material: Polyamide
- Operating Temperature Range: -20°C to +120°C
- Lubrication: Oil lubrication
- Material: Standard bearing steel
Potential Applications
- Automotive transmission systems
- Precision machinery
- Industrial robotics
- Compact mechanical equipment
- Motion control devices
Ideal for engineers and designers seeking a compact, high-performance bearing solution with robust load-handling capabilities across various industrial and mechanical environments.
