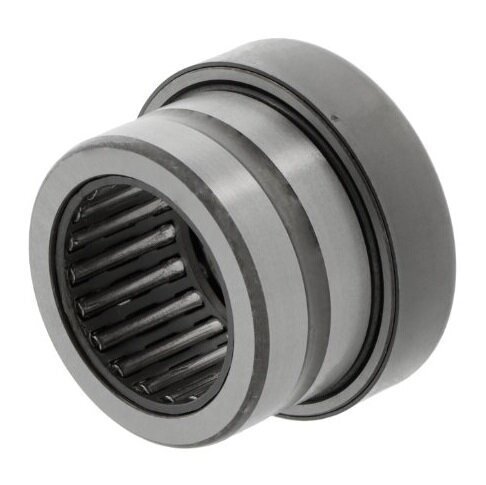

NAX7040Z IKO Needle Roller/Thrust Ball Bearing with Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
IKO
C1
18mm
C2
11mm
D2
96.5mm max
dw
70mm
Inside Dia (Fw)
70mm
Interchangeable With
NKX70Z
Outside Dia (D)
85mm
Width (C)
40mm
Quick Order Code
BB-127288
Product Description
The NAX7040Z IKO Needle Roller/Thrust Ball Bearing is a sophisticated precision bearing designed to handle complex load requirements in compact mechanical systems. This advanced bearing combines a radial needle roller bearing with a thrust ball bearing mechanism, offering exceptional performance in space-constrained applications.
Key Features:
- Dual-functionality design supporting both radial and axial loads
- Single direction load accommodation
- Integrated end cap for grease lubrication
- Compact profile with 70mm inside diameter
- Robust construction suitable for precision mechanical environments
Technical Specifications:
- Inside Diameter (Fw): 70mm
- Outside Diameter (D): 85mm
- Width (C): 40mm
- Interchangeable Model: NKX70Z
Potential Applications:
- Automotive transmission systems
- Industrial machinery with complex load requirements
- Precision mechanical engineering
- Robotics and automated equipment
- Heavy-duty mechanical assemblies requiring compact load-bearing solutions
Ideal for engineers and designers seeking a versatile, high-performance bearing solution that can efficiently manage both radial and thrust loads in a single, compact unit.
