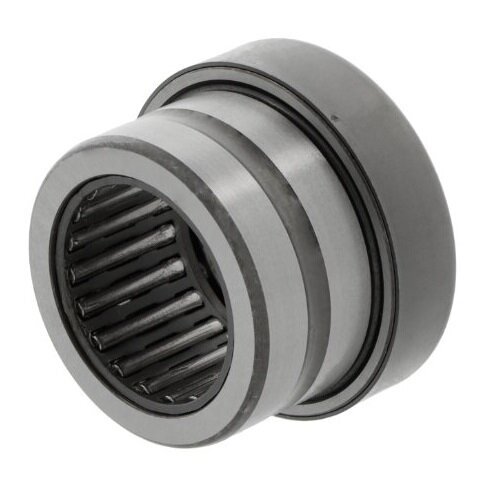

NAX6040Z IKO Needle Roller/Thrust Ball Bearing with Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
IKO
C1
17mm
C2
12mm
D2
86.5mm max
dw
60mm
Inside Dia (Fw)
60mm
Interchangeable With
NKX60Z
Outside Dia (D)
72mm
Width (C)
40mm
Quick Order Code
BB-127287
Product Description
The NAX6040Z IKO Needle Roller/Thrust Ball Bearing is a precision-engineered combined bearing designed to handle complex load requirements in compact mechanical systems. This innovative bearing integrates needle roller and thrust ball bearing technologies to provide robust performance across various industrial applications.
Key Features:
- Combination of needle roller and thrust ball bearing design
- Axial component capability
- Single direction load capacity
- Sealed end cap design for grease lubrication
- Bore diameter: 60mm
- Outside diameter: 72mm
- Total width: 40mm
Technical Specifications:
- Brand: IKO
- Interchangeable with: NKX60Z
- Maximum outer diameter (D2): 86.5mm
- Shaft width dimensions: C1 (17mm), C2 (12mm)
Typical Applications:
- Precision machinery
- Automotive transmission systems
- Industrial gearboxes
- Robotic equipment
- Compact mechanical assemblies requiring complex load management
The sealed end cap design ensures optimal grease lubrication, making this bearing ideal for high-precision environments where efficient lubrication and load handling are crucial. Its compact profile enables installation in space-constrained mechanical systems while maintaining superior performance in handling thrust and radial loads.
